RM36D0EC _58 Vehicle Interior _083104 HEATING / AIR CONDITIONING _0403076 AIR CONDITIONING PRESSURE SENSOR A

HEATING / AIR CONDITIONING  AIR CONDITIONING PRESSURE SENSOR  INSTALLATION


PROCEDURE

Hide 88719A 1.INSTALL AIR CONDITIONER PRESSURE SENSOR

a.

Remove the vinyl tape from the air conditioning tube and accessory assembly.


b.

Sufficiently apply compressor oil to the O-ring of a new air conditioner pressure sensor and the fitting surface of the air conditioner pressure sensor.

Compressor Oil:
Refrigerant Compressor Oil
for HV Model ND-OIL 11 or equivalent
for Gasoline Model ND-OIL 8 or equivalent


NOTICE:
·

for HV Model: Do not use any compressor oil other than ND-OIL 11 or equivalent. If any compressor oil other than ND-OIL 11 or equivalent is used, compressor motor insulation performance may decrease, resulting in leakage of electric power.

·

Keep the O-ring and O-ring fitting surface free of foreign matter.




c.

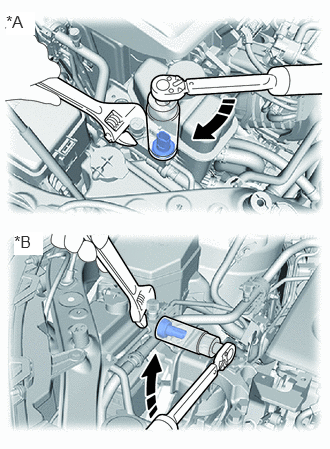

E425241C01
0.063,0.125 0.365,0.365 0.302,0.24 12 true *A 0.146,2.417 0.448,2.656 0.302,0.24 12 true *B
*A for HV Model
*B for Gasoline Model
V113147

Install in this Direction


Using a 27 mm deep socket wrench, install the air conditioner pressure sensor as shown in the illustration.

Torque:
10.8 N*m (110 kgf*cm, 8 ft.*lbf)


d.

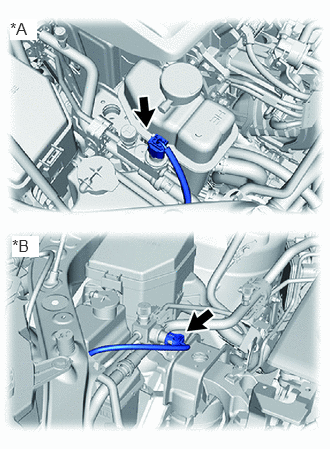

E425239C01
0.104,0.198 0.385,0.417 0.281,0.219 12 true *A 0.125,2.458 0.406,2.677 0.281,0.219 12 true *B
*A for HV Model
*B for Gasoline Model


Connect the connector.
