HEATING / AIR CONDITIONING  AMBIENT TEMPERATURE SENSOR  INSPECTION

0.521,0.135 0.375,0.135 0.375,0.135 0.375,0.396 false 1.646,3.104 1.646,2.75 1.646,2.75 1.896,2.75 true 1.906,0.208 2.219,0.365 0.313,0.156 10 false *a 0.563,0.052 0.875,0.208 0.313,0.156 10 false *b 0.104,2.813 0.417,2.969 0.313,0.156 10 false *c 1.885,4.458 2.198,4.615 0.313,0.156 10 false *d 1.938,2.667 2.25,2.823 0.313,0.156 10 false *e 0.5,4.177 0.813,4.438 0.313,0.26 10 false (50) 1.021,4.177 1.333,4.438 0.313,0.26 10 false (68) 1.552,4.177 1.865,4.438 0.313,0.26 10 false (86) 2.063,4.177 2.438,4.448 0.375,0.271 10 false (104) 2.604,4.177 2.969,4.438 0.365,0.26 10 false (122) 3.104,4.177 3.427,4.438 0.323,0.26 10 false (140)

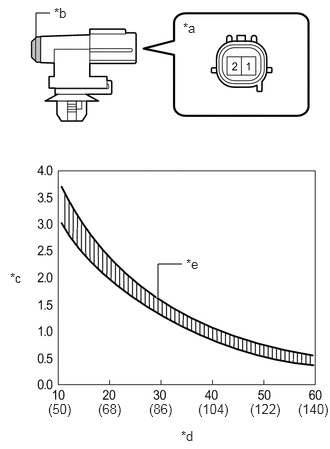

*a	Component without harness connected (Thermistor Assembly)
*b	Sensing Portion
*c	Resistance (kΩ)
*d	Temperature (°C (°F))
*e	Allowable Range

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - 2	10°C (50°F)	3.00 to 3.73 kΩ
	15°C (59°F)	2.45 to 2.88 kΩ
	20°C (68°F)	1.95 to 2.30 kΩ
	25°C (77°F)	1.60 to 1.80 kΩ
	30°C (86°F)	1.28 to 1.47 kΩ
	35°C (95°F)	1.00 to 1.22 kΩ
	40°C (104°F)	0.80 to 1.00 kΩ
	45°C (113°F)	0.65 to 0.85 kΩ
	50°C (122°F)	0.50 to 0.70 kΩ
	55°C (131°F)	0.44 to 0.60 kΩ
	60°C (140°F)	0.36 to 0.50 kΩ

NOTICE:

·

Hold the sensor only by its connector. Touching the sensing portion may change the resistance value.

·

When measuring, the sensor temperature must be the same as the ambient temperature.

·

Use a thermometer to detect the ambient temperature of the installation area around the thermistor assembly.

HINT:

As the temperature increases, the resistance decreases (see the graph).
