M20D-FKS ENGINE MECHANICAL  FRONT CRANKSHAFT OIL SEAL  COMPONENTS

ILLUSTRATION

0.198,2.021 1.115,2.229 0.917,0.208 0.156,1.979 1.156,2.271 1,0.292 3.333,0.948 4.031,0.948 false 0.656,2.01 0.656,1.333 0.656,1.333 0.865,1.333 false 1.625,2.563 1.625,2.052 false 2.333,2.76 2.333,2.25 false 1.552,2.594 1.75,2.781 0.198,0.188 10 false *1 4.073,0.854 4.385,1.01 0.313,0.156 10 false *2 2.188,2.792 2.573,3.01 0.385,0.219 10 false ● *3 0.156,2.292 0.344,2.49 0.188,0.198 10 false *4 0.25,2.031 1.26,2.229 1.01,0.198 8 false 260 (2651, 192)

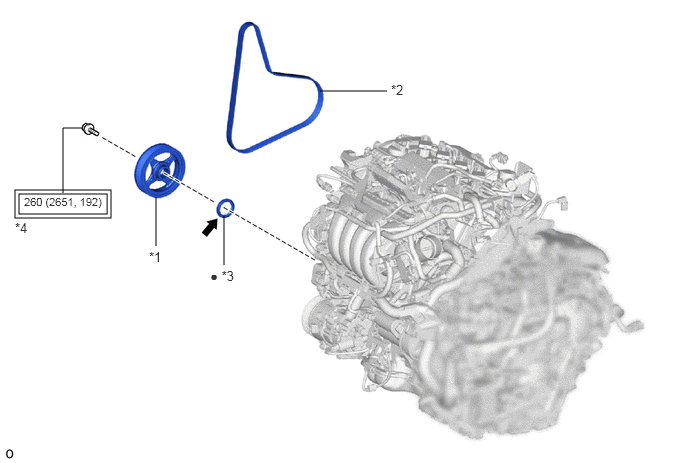

*1	CRANKSHAFT PULLEY ASSEMBLY	*2	V- RIBBED BELT
*3	TIMING CHAIN COVER OIL SEAL	*4	CRANKSHAFT PULLEY BOLT
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	●	Non-reusable part
	MP grease	-	-
