RM36D0EC _51 Engine / Hybrid System _083065 M20D-FKS STARTING _0402942 IGNITION SWITCH A

M20D-FKS STARTING IGNITION SWITCH REMOVAL

PROCEDURE

Hide Display 45024 1.REMOVE LOWER STEERING COLUMN COVER SUB-ASSEMBLY

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>REMOVAL201910,202004,_55,_083084,_0402690,RM100000001JK7L_01_0047,202004,202104,_55,_083084,_0402690,RM100000001MLZ3_01_0047,202104,202304,_55,_083084,_0402690,RM100000001WKHY_01_0047,202304,202405,_55,_083084,_0402690,RM100000002AFWO_01_0047,202405,202409,_55,_083084,_0402690,RM100000002LRZV_01_0047,202409,999999,_55,_083084,_0402690,RM100000002NT5O_01_0047,

Hide Display 84450 2.REMOVE IGNITION OR STARTER SWITCH ASSEMBLY

a.

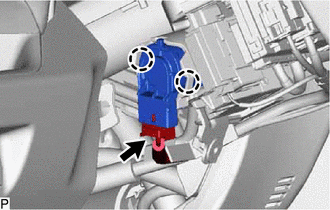

A434693

Disconnect ignition or starter switch assembly connector.

b.

Detach the 2 claws and remove the ignition or starter switch assembly from the upper steering column bracket assembly.
