GF2A TRANSFER / 4WD / AWD  MULTI-TERRAIN SELECT SWITCH  INSPECTION

1.615,1.875 1.781,1.875 1.781,1.875 1.781,1.292 true 2.094,1.875 1.927,1.875 1.927,1.875 1.927,1.292 true 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 1.438,1.792 1.615,1.99 0.177,0.198 10 false B 2.167,1.781 2.417,2.031 0.25,0.25 10 false E

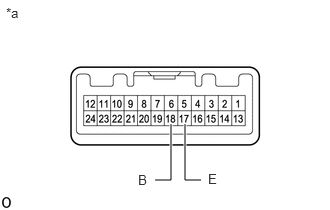

*a	Component without harness connected Integration Control And Panel Assembly (Multi-Terrain Select Switch)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Switch Condition	Specified Condition
18 (B) - 17 (E)	NORMAL mode switch being pushed and held	80.3 to 83.6 Ω
	NORMAL mode switch not pushed	10 kΩ or higher
18 (B) - 17 (E)	ROCK & DIRT mode switch being pushed and held	0.58 to 0.6 kΩ
	ROCK & DIRT mode switch not pushed	10 kΩ or higher
18 (B) - 17 (E)	MUD & SAND mode switch being pushed and held	2.05 to 2.13 kΩ
	MUD & SAND mode switch not pushed	10 kΩ or higher

If the result is not as specified, replace the integration control and panel assembly (multi-terrain select switch).

0.771,0.271 0.938,0.271 0.938,0.271 0.938,1.021 true 2.646,0.271 2.479,0.271 2.479,0.271 2.479,1.021 true 2.74,0.177 3.073,0.427 0.333,0.25 10 false ILL- 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.469,0.198 0.823,0.5 0.354,0.302 10 false ILL+

*a	Component without harness connected Integration Control And Panel Assembly (Multi-Terrain Select Switch)

Inspect the illumination:

Apply battery voltage to the integration control and panel assembly (multi-terrain select switch) and check that the switch illuminates.

OK:

Condition	Specified Condition
Battery positive (+) → Terminal 12 (ILL+) Battery negative (-) → Terminal 1 (ILL-)	Illuminates

If the result is not as specified, replace the integration control and panel assembly (multi-terrain select switch).
