GF1A TRANSFER / 4WD / AWD  TRANSFER CASE FRONT OIL SEAL(for RH Side)  COMPONENTS

ILLUSTRATION

3.583,5.75 4.667,5.917 1.083,0.167 3.583,5.833 3.417,5.833 3.417,5.833 3.417,5.427 true 2.25,4.75 2.417,4.75 2.417,4.75 2.667,4.333 true 3.677,5.76 4.844,5.927 1.167,0.167 8 false 7.5 (76, 66 in.*lbf) 4.604,4.958 4.927,5.146 0.323,0.188 10 false x 2 3.552,5.313 3.865,5.49 0.313,0.177 10 false x 2 4.115,5.271 4.365,5.438 0.25,0.167 10 false x 6 1.979,4.677 2.208,4.844 0.229,0.167 10 false *1

*1	NO. 2 ENGINE UNDER COVER ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

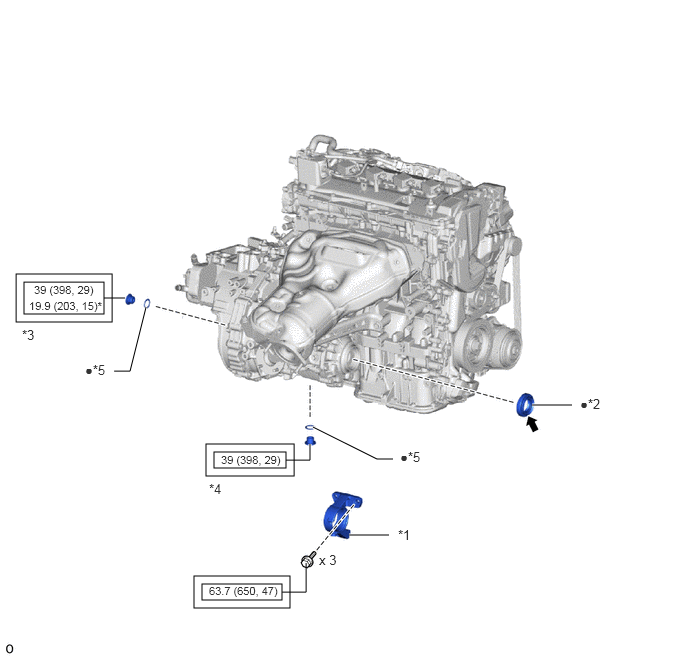

ILLUSTRATION

2.021,6 3.021,6.333 1,0.333 2.104,6.083 2.938,6.25 0.833,0.167 0.167,2.854 1.167,3.354 1,0.5 0.25,2.938 1.083,3.271 0.833,0.333 2.146,4.625 3.063,4.958 0.917,0.333 2.229,4.708 2.979,4.875 0.75,0.167 5.542,4.219 5.958,4.219 true 3.635,5.573 4.052,5.573 true 2.938,6.167 3.188,6.167 3.188,6.167 3.188,5.865 false 1.083,3.104 1.302,3.104 true 3.229,4.625 3.229,4.792 3.229,4.792 2.979,4.792 true 1.188,3.865 1.354,3.865 1.354,3.865 1.521,3.198 true 4.094,4.781 3.927,4.781 3.927,4.781 3.26,4.448 true 4.146,5.49 4.406,5.656 0.26,0.167 10 false *1 6.042,4.125 6.354,4.281 0.313,0.156 10 false ●*2 3.323,5.75 3.781,5.948 0.458,0.198 10 false x 3 2.177,6.083 3.896,6.24 1.719,0.156 8 false 63.7 (650, 47) 0.354,2.948 1.823,3.104 1.469,0.156 8 false 39 (398, 29) 0.302,3.115 2.021,3.271 1.719,0.156 8 false 19.9 (203, 15)* 2.302,4.719 3.771,4.875 1.469,0.156 8 false 39 (398, 29) 4.167,4.677 4.563,4.917 0.396,0.24 10 false ●*5 0.885,3.771 1.156,4 0.271,0.229 10 false ●*5 0.229,3.406 0.563,3.573 0.333,0.167 10 false *3 2.177,5.01 2.479,5.229 0.302,0.219 10 false *4

*1	DRIVE SHAFT BEARING BRACKET	*2	TRANSFER CASE OIL SEAL RH
*3	TRANSFER FILLER PLUG	*4	TRANSFER DRAIN PLUG
*5	GASKET	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	*	For use with SST and union nut wrench
●	Non-reusable part		MP grease
