AXLE AND DIFFERENTIAL DIFFERENTIAL MOUNT CUSHION REMOVAL

PROCEDURE

Hide Display 1.REMOVE TORQUE VECTORING DIFFERENTIAL CARRIER ASSEMBLY (for Torque Vectoring Differential)

Click hereDrivetrain>AXLE AND DIFFERENTIAL>REAR DIFFERENTIAL CARRIER ASSEMBLY (for Torque Vectoring Differential)>REMOVAL201910,202004,_52,_083071,_0402907,RM100000001JLV2,202004,202304,_52,_083071,_0402907,RM100000001MQIT,202304,999999,_52,_083071,_0402907,RM100000002B3ZV,

Hide Display 41110 2.REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY (except Torque Vectoring Differential)

Click hereDrivetrain>AXLE AND DIFFERENTIAL>REAR DIFFERENTIAL CARRIER ASSEMBLY>REMOVAL201910,202304,_52,_083071,_0402906,RM100000001JLUX,202304,999999,_52,_083071,_0402906,RM100000002B3Z6,

Hide Display 41651 3.REMOVE REAR NO. 1 DIFFERENTIAL MOUNT CUSHION

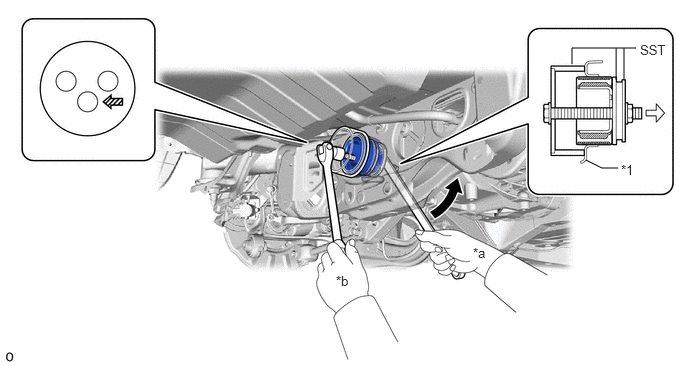

Using SST, remove the rear No. 1 differential mount cushion.

SST: 09316-12010
09570-24011

5.958,0.667 5.958,0.5 5.958,0.5 6.625,0.5 false 6.5,0.833 6.5,0.5 false 6.417,0.833 6.417,0.5 false 6.438,1.75 6.271,1.75 6.271,1.75 6.104,1.667 false 4.927,2.552 5.177,2.802 0.25,0.25 10 false *a 3.5,2.844 3.75,3.094 0.25,0.25 10 false *b 6.667,0.438 7.083,0.688 0.417,0.25 10 false SST 6.469,1.688 6.719,1.938 0.25,0.25 10 false *1

*1	Rear Suspension Member Sub-assembly	-	-
*a	Turn	*b	Hold
	Turning Direction		Front of Vehicle
	SST Bolt Position	-	-

NOTICE:: ·

Do not bring SST into contact with the rear suspension member sub-assembly.

·

Before using SST, apply grease to SST bolt.

·

Set SST in the correct direction.

·

Do not tilt the bolt of SST.

·

Do not reuse the rear No. 1 differential mount cushion.
