RM36D0EC _59 Vehicle Exterior _083096 LIGHTING (EXT) _0402642 AUTOMATIC HIGH BEAM MAIN SWITCH A

LIGHTING (EXT) AUTOMATIC HIGH BEAM MAIN SWITCH REMOVAL

PROCEDURE

Hide Display 67914B 1.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL201910,202004,_58,_083106,_0400609,RM100000001J8OU_01_0071,202004,202304,_58,_083106,_0400609,RM100000001MYUH_01_0071,202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0071,

Hide Display 62112 2.REMOVE COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0028,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0028,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0028,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0028,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0028,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0028,

Hide Display 55606 3.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0002,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0002,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0002,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0002,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0002,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0002,

Hide Display 53601 4.REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0079,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0079,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0079,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0079,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0079,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0079,

Hide Display 77306 5.REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY (for Gasoline Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0080,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0080,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0080,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0080,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0080,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0080,

Hide Display 55545 6.REMOVE FUSE BOX OPENING COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201910,202004,_58,_083106,_0400607,RM100000001J8ON_01_0009,202004,202104,_58,_083106,_0400607,RM100000001MIPG_01_0009,202104,202304,_58,_083106,_0400607,RM100000001W6F2_01_0009,202304,202405,_58,_083106,_0400607,RM1000000029PZ2_01_0009,202405,202409,_58,_083106,_0400607,RM100000002LWUN_01_0009,202409,999999,_58,_083106,_0400607,RM100000002NG5W_01_0009,

Hide Display 84153 7.REMOVE AUTO HIGH BEAM SWITCH

a.

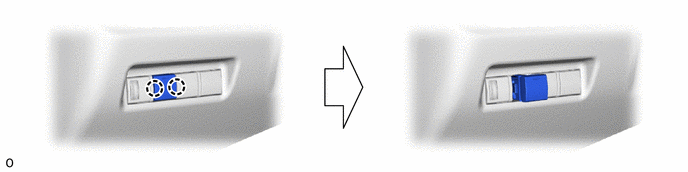

Detach the claw and remove the auto high beam switch.

B555577
