Vehicle Exterior
_083096
LIGHTING (EXT)
_0402639
HEADLIGHT DIMMER SWITCH
A
LIGHTING (EXT) HEADLIGHT DIMMER SWITCH REMOVAL
PROCEDURE
45287
1.REMOVE LOWER STEERING COLUMN COVER
45286B
2.REMOVE UPPER STEERING COLUMN COVER
84329

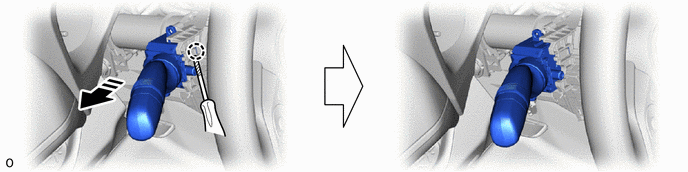

3.REMOVE TURN SIGNAL SWITCH
a.
Remove the 2 screws.
b.
Using a screwdriver, detach the claw and remove the turn signal switch.
- HINT:
-
Tape the screwdriver tip before use.
0,0 0,0
false
|
Remove in this Direction |
|
Protective Tape |
