WIPER / WASHER  WIPER ECU  REMOVAL

67914B 1.REMOVE FRONT DOOR SCUFF PLATE LH

62112 2.REMOVE COWL SIDE TRIM BOARD LH

62312B 3.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

55318C 4.REMOVE INSTRUMENT SIDE PANEL LH

a.

0,0 0,0 false

Protective Tape

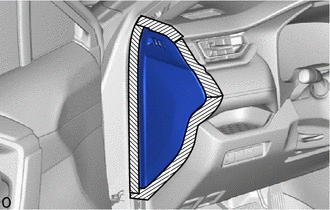

Apply protective tape around the instrument side panel LH as shown in the illustration.

b.

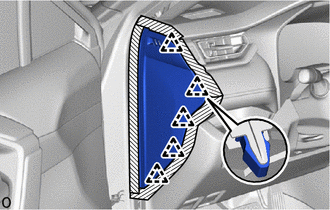

Using a moulding remover B, detach the clip.

c.

0,0 0,0 false

Remove in this Direction

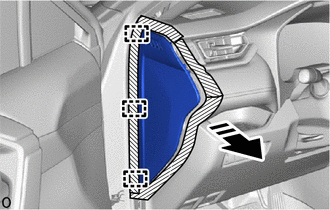

Detach the guide and remove the instrument side panel LH as shown in the illustration.

55606 5.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

55545 6.REMOVE FUSE BOX OPENING COVER

85940 7.REMOVE WINDSHIELD WIPER RELAY ASSEMBLY

a.

0,0 0,0 false

	Bolt
	Connector

Disconnect the 2 connectors.

b.

Remove the bolt.

c.

Detach the guide and remove the windshield wiper relay assembly.

NOTICE:

Do not subject the windshield wiper relay assembly to strong impacts or force, and do not drop it.
