RM36D0EC _59 Vehicle Exterior _083109 WIPER / WASHER _0402381 WASHER NOZZLE A

WIPER / WASHER WASHER NOZZLE REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure below is for the LH side.

PROCEDURE

Hide Display 53341B 1.REMOVE HOOD INSULATOR

Click hereVehicle Exterior>DOOR / HATCH>HOOD>DISASSEMBLY201910,999999,_59,_083093,_0403685,RM100000001JUFY_01_0002,

Hide Display 85035 2.REMOVE WASHER NOZZLE SUB-ASSEMBLY

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)
	Protective Tape

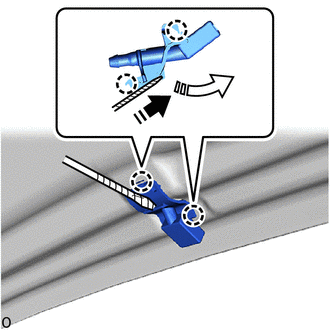

Using a screwdriver with its tip wrapped with protective tape, detach the claw as indicated by the arrows, in the order shown in the illustration to separate the washer nozzle sub-assembly.

NOTICE:: Be careful not to damage the windshield glass.

Disconnect the washer hose to remove the washer nozzle sub-assembly.

NOTICE:: Washer nozzle sub-assemblies cannot be reused.
