RM36D0EC _59 Vehicle Exterior _083109 WIPER / WASHER _0402379 WIPER SWITCH A

WIPER / WASHER  WIPER SWITCH  INSTALLATION


PROCEDURE

Hide 84650 1.INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

a.

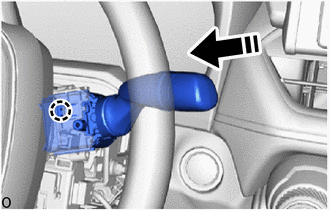

B523540C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the windshield wiper switch assembly as shown in the illustration.


Hide 45286B 2.INSTALL UPPER STEERING COLUMN COVER

a.
B523538

Attach the claw and guide to install the upper steering column cover to the meter hood spacer.


b.

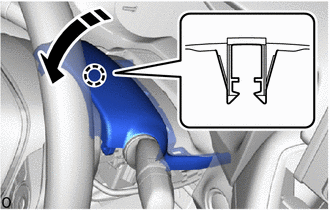

B523541C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the upper steering column cover.


Hide 45287 3.INSTALL LOWER STEERING COLUMN COVER

a.

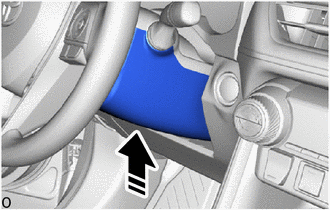

B523542C01
0,0 0,0 false
V113147

Install in this Direction


Install the lower steering column cover as shown in the illustration.


b.

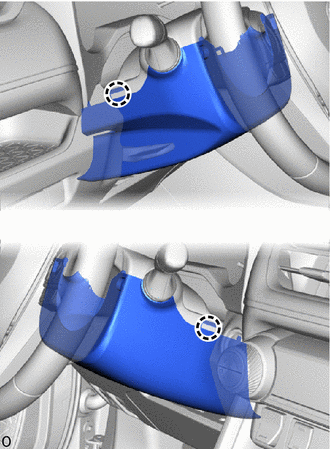

B558621

Attach the claw and install the lower steering column cover as shown in the illustration.


c.
B558619

Install the screw.


d.
B558618

Turn the steering wheel assembly 90° to the left from the straight condition and install the screw shown in the illustration.


e.
B558617

Turn the steering wheel assembly 90° to the right from the straight condition and install the screw shown in the illustration.
