RM36D0EC _59 Vehicle Exterior _083109 WIPER / WASHER _0402376 REAR WIPER MOTOR A

WIPER / WASHER REAR WIPER MOTOR INSTALLATION

PROCEDURE

Hide Display 85143R 1.INSTALL REAR WIPER MOTOR GROMMET

0.771,1.115 1.208,0.99 true 2.219,0.99 2.656,1.104 true 0.573,1.042 0.885,1.24 0.313,0.198 10 false *a 2.719,1.052 3.031,1.25 0.313,0.198 10 false *a

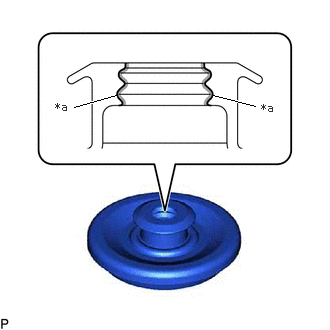

*a	Rear Wiper Motor Grommet Lip

Apply MP grease to the entire surface of the rear wiper motor grommet lip.

HINT:: Make sure that the hole does not get clogged with grease and the grooves on the lip are filled with grease.

0.792,0.917 1.125,0.781 true 1.135,0.677 1.427,0.948 0.292,0.271 10 false *a

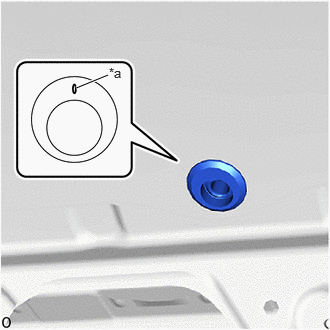

Matchmark

Install the rear wiper motor grommet.

HINT:: Install the rear wiper motor grommet with its matchmark facing up.

Hide Display 85110R 2.INSTALL REAR WIPER MOTOR ASSEMBLY

0,0 0,0 false

	Bolt
	Connector

Install the rear wiper motor assembly with the 3 bolts.

Torque:: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

Connect the connector.

NOTICE:: Do not reuse the rear wiper motor assembly which has been subjected to an impact or dropped.

Hide Display 3.INSTALL REAR WIPER ARM AND BLADE ASSEMBLY

1.885,1.198 2.302,0.781 true 1.958,3.146 2.563,3.146 false 2.365,0.698 2.677,0.854 0.313,0.156 10 false *a 2.656,3.063 2.969,3.219 0.313,0.156 10 false *b

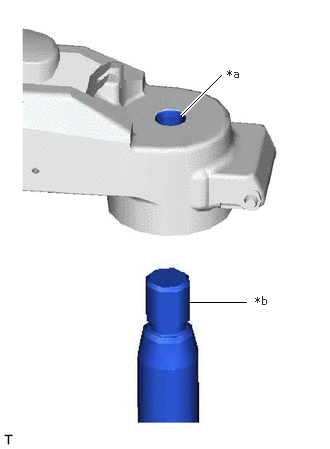

*a	Rear Wiper Arm Serrations
*b	Rear Wiper Motor Assembly Pivot Serrations

When reusing the rear wiper arm and blade assembly:

Clean the rear wiper arm serrations.

NOTICE:: Do not grind the rear wiper arm serrations.

When reusing the rear wiper motor assembly:

Using a wire brush, clean the rear wiper motor assembly pivot serrations.

NOTICE:: Do not grind the rear wiper motor assembly pivot serrations.

Turn the ignition switch to ON.

Operate the rear wiper motor assembly and stop at the automatic stop (park) position.

Turn the ignition switch off.

1,0.646 1.281,0.292 true 1.292,0.167 1.604,0.417 0.313,0.25 10 false *a 0.604,0.458 0.917,0.708 0.313,0.25 10 false A 0.604,0.74 0.917,0.99 0.313,0.25 10 false A

*a	Ceramic Notch

Align the ceramic notch of the back door glass sub-assembly with the edge of the rear wiper arm and blade assembly to install the rear wiper arm and blade assembly with the nut.

Torque:: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

Standard:

Area	Standard Condition
A	10 mm (0.394 in.)

HINT:: Hold the rear wiper arm by hand while tightening the nut.

Turn the ignition switch to ON.

Operate the rear wiper while spraying washer fluid onto the back door glass. Make sure that the rear wiper functions properly and the wiper does not come into contact with the vehicle body.

Turn the ignition switch off.

Raise the rear wiper arm 2 times and check that the tip of the rear wiper blade is within the range shown in the illustration.

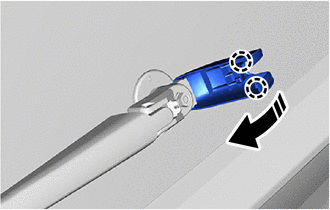

Hide Display 85292A 4.INSTALL REAR WIPER ARM HEAD CAP
