WIPER / WASHER REAR WIPER MOTOR REMOVAL
PROCEDURE
67939B
1.REMOVE BACK DOOR CENTER GARNISH
67938A
2.REMOVE BACK DOOR SIDE GARNISH LH
67937B
3.REMOVE BACK DOOR SIDE GARNISH RH
- HINT:
-
Use the same procedure described for the LH side.
67199
4.REMOVE BACK DOOR HANDLE COVER
67199
5.REMOVE BACK DOOR HANDLE COVER
- HINT:
-
Use the same procedure described for the LH side.
67750
6.REMOVE BACK DOOR TRIM BOARD ASSEMBLY
85292A
7.REMOVE REAR WIPER ARM HEAD CAP
|
Remove in this Direction |

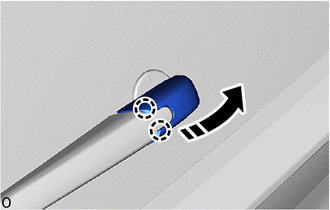

Detach the claw and open the rear wiper arm head cap as shown in the illustration.

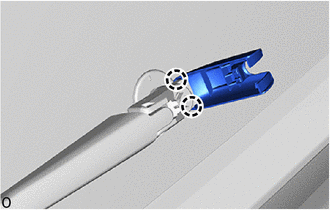

Detach the claw and remove the rear wiper arm head cap.

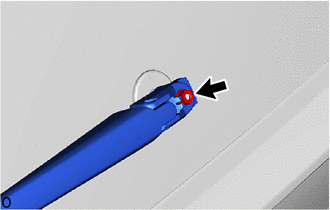

8.REMOVE REAR WIPER ARM AND BLADE ASSEMBLY
Remove the nut and rear wiper arm and blade assembly.
85110R

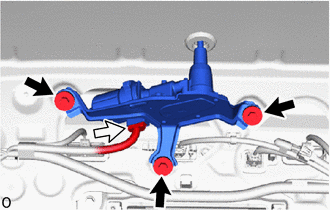

9.REMOVE REAR WIPER MOTOR ASSEMBLY
|
Bolt |
|
Connector |
Disconnect the connector.
Loosen the 3 bolts and remove the rear wiper motor assembly.
- NOTICE:
-
Do not subject the rear wiper motor assembly to strong impacts or force, and do not drop it.
85143R

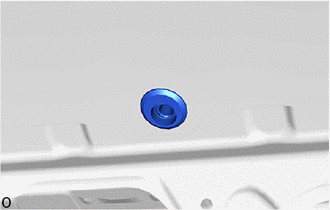

10.REMOVE REAR WIPER MOTOR GROMMET
Remove the rear wiper motor grommet.
