WIPER / WASHER  REAR WIPER MOTOR  ON-VEHICLE INSPECTION


PROCEDURE

Hide 85110R 1.INSPECT REAR WIPER MOTOR ASSEMBLY

a.

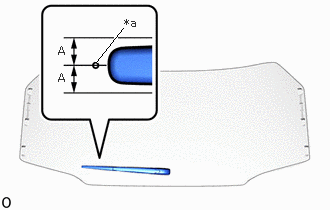

B522775C01
1,0.646 1.281,0.292 true 1.292,0.167 1.604,0.417 0.313,0.25 10 false *a 0.604,0.458 0.917,0.708 0.313,0.25 10 false A 0.604,0.74 0.917,0.99 0.313,0.25 10 false A
*a Ceramic Notch


Operate the rear wiper motor assembly.


b.

Stop the rear wiper motor assembly operation.


c.

Check the automatic stop (park) position.

HINT:

After the rear wiper motor assembly is stopped, check the automatic stop position after lifting the wiper blade 2 times.


Standard Clearance:
Area Measurement
A 10 mm (0.394 in.)


OK:

The rear wiper motor assembly stops at the position shown in the illustration.
