RM36D0EC _59 Vehicle Exterior _083109 WIPER / WASHER _0402375 FRONT WIPER MOTOR A

WIPER / WASHER  FRONT WIPER MOTOR  ON-VEHICLE INSPECTION


PROCEDURE

Hide 85110 1.INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY

a.

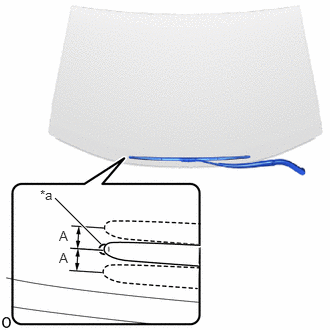

B558669C01
0.573,2.063 1.052,2.542 true 0.417,1.948 0.729,2.104 0.313,0.156 10 false *a 0.615,2.375 0.781,2.552 0.167,0.177 10 false A 0.615,2.604 0.781,2.781 0.167,0.177 10 false A
*a Ceramic Notch


for LH Side:

i.

Operate the windshield wiper motor assembly.


ii.

Stop the windshield wiper motor assembly operation.


iii.

Check the automatic stop (park) position.

HINT:

After the windshield wiper motor assembly is stopped, check the automatic stop position after lifting the wiper blade 2 times.


Standard Clearance:
Area Measurement
A 10 mm (0.394 in.)


OK:

The windshield wiper motor assembly stops at the position shown in the illustration.




b.

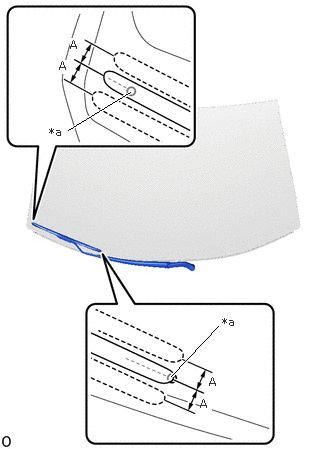

B522812C01
0.708,1.354 1.354,0.958 true 1.781,3.917 2.271,3.396 true 0.51,1.302 0.823,1.458 0.313,0.156 10 false *a 0.729,0.396 0.875,0.552 0.146,0.156 10 true A 0.615,0.615 0.74,0.771 0.125,0.156 10 true A 2.313,3.281 2.625,3.438 0.313,0.156 10 false *a 2.177,3.906 2.302,4.063 0.125,0.156 10 true A 2.083,4.135 2.208,4.292 0.125,0.156 10 true A
*a Ceramic Notch


for RH Side:

i.

Operate the windshield wiper motor assembly.


ii.

Stop the windshield wiper motor assembly operation.


iii.

Check the automatic stop (park) position.

HINT:

After the windshield wiper motor is stopped, check the automatic stop position after lifting the wiper blade 2 times.


Standard Clearance:
Area Measurement
A 10 mm (0.394 in.)


OK:

The windshield wiper motor assembly stops at the position shown in the illustration.
