HORN  HORN  INSPECTION

2.813,1.875 2.563,1.385 true 3.063,0.375 2.823,0.542 true 0.094,0.073 0.458,0.417 0.365,0.344 10 false *a 2.802,1.927 3.115,2.125 0.313,0.198 10 false 1 3.115,0.292 3.427,0.49 0.313,0.198 10 false *b

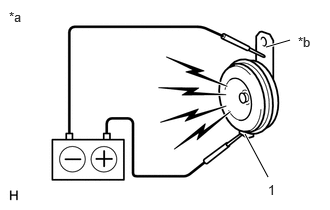

*a	Component without harness connected (High Pitched Horn Assembly)
*b	Body Ground

for Type A:

Apply auxiliary battery voltage and check the operation of the high pitched horn assembly according to the table below.

OK:

Measurement Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Body ground	Horn sounds

If the result is not as specified, replace the high pitched horn assembly.

1.438,0.656 2.125,0.417 false 1.094,1.271 1.375,1.542 true 0.104,0.094 0.406,0.344 0.302,0.25 10 false *a 2.146,0.292 2.469,0.51 0.323,0.219 10 false *b 1.427,1.49 1.938,1.792 0.51,0.302 10 false 1

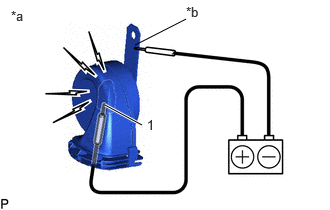

*a	Component without harness connected (High Pitched Horn Assembly)
*b	Body Ground

for Type B:

Apply auxiliary battery voltage and check the operation of the high pitched horn assembly according to the table below.

OK:

Measurement Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Body ground	Horn sounds

If the result is not as specified, replace the high pitched horn assembly.

2.792,1.844 2.552,1.396 true 3.021,0.417 2.771,0.49 true 0.094,0.094 0.458,0.438 0.365,0.344 10 false *a 2.792,1.896 2.948,2.094 0.156,0.198 10 false 1 3.104,0.354 3.26,0.552 0.156,0.198 10 false *b

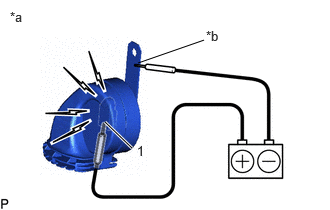

*a	Component without harness connected (Low Pitched Horn Assembly)
*b	Body Ground

for Type A:

Apply auxiliary battery voltage and check the operation of the low pitched horn assembly according to the table below.

OK:

Measurement Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Body ground	Horn sounds

If the result is not as specified, replace the low pitched horn assembly.

1.479,1.302 1.094,1.094 true 1.938,0.198 1.406,0.469 false 1.531,1.219 1.865,1.667 0.333,0.448 10 false 1 1.938,0.042 2.208,0.271 0.271,0.229 10 false *b 0.115,0.083 0.385,0.313 0.271,0.229 10 false *a

*a	Component without harness connected (Low Pitched Horn Assembly)
*b	Body Ground

for Type B:

Apply auxiliary battery voltage and check the operation of the low pitched horn assembly according to the table below.

OK:

Measurement Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Body ground	Horn sounds

If the result is not as specified, replace the low pitched horn assembly.
