GF2A TRANSFER / 4WD / AWD DYNAMIC TORQUE VECTORING AWD SYSTEM C05E71C 4WD/AWD Clutch "B" Actuator Control Circuit Performance Circuit Voltage Out of Range
DESCRIPTION
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | Warning Indicate | Memory |
|---|---|---|---|---|---|
| C05E71C | 4WD/AWD Clutch "B" Actuator Control Circuit Performance Circuit Voltage Out of Range | ·
The command current of the rear 4WD linear solenoid is 0 A and the short circuit continues for 1 second or more ·
The command current of the rear 4WD linear solenoid is 3.0 A or higher and the open circuit continues for 0.5 seconds or more |
·
Wire harness or connector ·
Rear 4WD linear solenoid (rear differential carrier assembly) ·
4WD ECU assembly |
Displayed | Yes |
| Vehicle Condition | |||
|---|---|---|---|
| Pattern 1 | Pattern 2 | ||
| Diagnosis Condition | The command current of the rear 4WD linear solenoid is 0 A | ○ | - |
| The command current of the rear 4WD linear solenoid is 3.0 A | - | ○ | |
| Malfunction Status | Short circuit | ○ | - |
| Open circuit | - | ○ | |
| Detection Time | 1 second or more | 0.5 seconds or more | |
| Number of Trips | 1 trip | 1 trip | |
- HINT:
-
DTC will be output when conditions for either of the patterns in the table above are met.

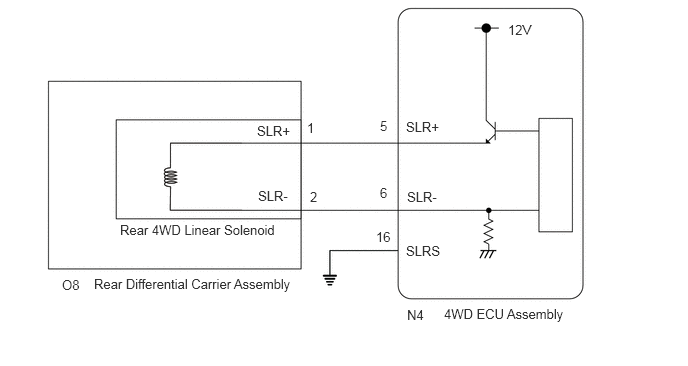

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- NOTICE:
- ·
When the 4WD ECU assembly is replaced, before removing the 4WD ECU assembly, it is necessary to perform ECU Data Save to save the original 4WD ECU assembly information.
·After performing repairs, clear the DTCs and check that the DTCs are not output again.
PROCEDURE
Turn the engine switch off.
Disconnect the N4 4WD ECU assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition N4-5 (SLR+) - N4-6 (SLR-) 20°C (68°F) 0.73 to 0.83 Ω N4-5 (SLR+) - Body ground Always 10 kΩ or higher
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition N4-6 (SLR-) - Body ground Always Below 1 V
- Result:
Proceed to OK NG
OK
NG
Turn the engine switch off.
Disconnect the O8 rear 4WD linear solenoid (rear differential carrier assembly) connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition N4-5 (SLR+) - O8-1 (SLR+) Always Below 1 Ω N4-6 (SLR-) - O8-2 (SLR-) Always Below 1 Ω N4-5 (SLR+) or O8-1 (SLR+) - Body ground Always 10 kΩ or higher N4-6 (SLR-) or O8-2 (SLR-) - Body ground Always 10 kΩ or higher N4-5 (SLR+) or O8-1 (SLR+) - N4-6 (SLR-) or O8-2 (SLR-) Always 10 kΩ or higher N4-5 (SLR+) - N4-16 (SLRS) Always 10 kΩ or higher N4-6 (SLR-) - N4-16 (SLRS) Always 10 kΩ or higher
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition N4-5 (SLR+) or O8-1 (SLR+) - Body ground Always Below 1 V
- Result:
Proceed to OK NG
OK
NG
