RM36D0EC _51 Engine / Hybrid System _083058 M20D-FKS ENGINE CONTROL _0401829 KNOCK SENSOR A

M20D-FKS ENGINE CONTROL  KNOCK SENSOR  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


HINT:

Perform "Inspection After Repair" after replacing the knock control sensor.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION


PROCEDURE

Hide 89615 1.INSTALL KNOCK CONTROL SENSOR

HINT:

Perform "Inspection After Repair" after replacing the knock control sensor.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION


a.

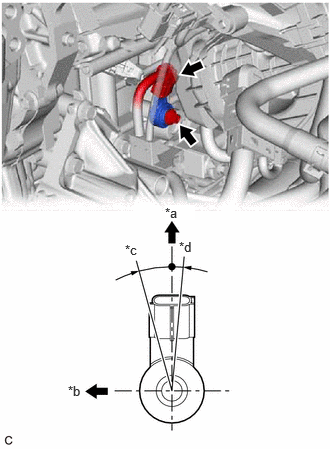

A402378C01
1.719,2.135 2.031,2.292 0.313,0.156 10 true *a 0.708,3.99 1.021,4.146 0.313,0.156 10 false *b 1.302,2.521 1.615,2.677 0.313,0.156 10 false *c 1.865,2.49 2.177,2.646 0.313,0.156 10 false *d
*a Top
*b Right of Vehicle
*c 15°
*d 5°


Install the knock control sensor to the cylinder block sub-assembly with the bolt so that the knock control sensor installation position is as shown in the illustration.

Torque:
20 N*m (204 kgf*cm, 15 ft.*lbf)

NOTICE:
·

If the knock control sensor has been struck or dropped, replace it.

·

Make sure that the knock control sensor is in the correct position.




b.

Connect the knock control sensor connector.
