RM36D0EC _51 Engine / Hybrid System _083058 M20D-FKS ENGINE CONTROL _0401827 IGNITION COIL AND SPARK PLUG A

M20D-FKS ENGINE CONTROL  IGNITION COIL AND SPARK PLUG  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during ignition coil assembly or spark plug removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
·

Replacement of ignition coil assembly

·

Replacement of spark plug


Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 19500 2.REMOVE IGNITION COIL ASSEMBLY

a.
A433265

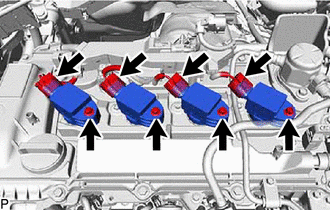

Disconnect the 4 ignition coil assembly connectors.


b.

Remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.

NOTICE:

If an ignition coil assembly has been struck or dropped, replace it.
