M20D-FKS ENGINE CONTROL  CRANKSHAFT POSITION SENSOR  COMPONENTS

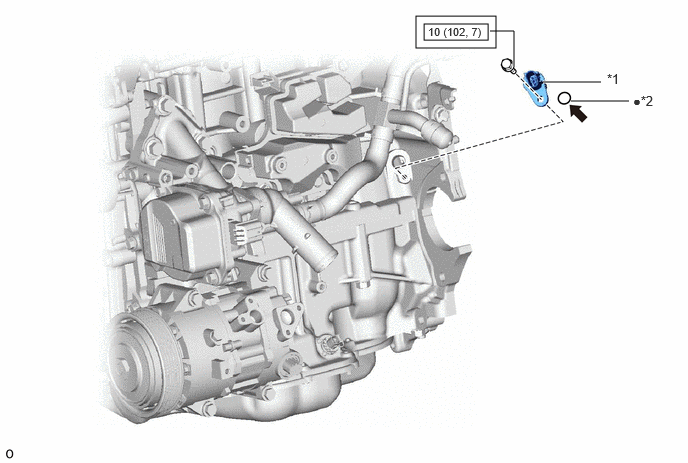

ILLUSTRATION

4.417,0.25 5.083,0.417 0.667,0.167 4.333,0.167 5.167,0.5 0.833,0.333 5.656,0.854 6.26,0.854 true 5.104,0.323 5.354,0.323 5.354,0.323 5.354,0.698 true 5.948,1.052 6.552,1.052 true 6.323,0.74 6.635,0.979 0.313,0.24 10 false *1 4.458,0.26 5.146,0.542 0.688,0.281 8 false 10 (102, 7) 6.594,0.969 6.906,1.208 0.313,0.24 10 false ●*2

*1	CRANKSHAFT POSITION SENSOR	*2	O-RING
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	●	Non-reusable part
	Engine Oil	-	-
