M20D-FKS ENGINE CONTROL CAMSHAFT POSITION SENSOR REMOVAL
CAUTION / NOTICE / HINT
- NOTICE:
-
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
PROCEDURE
12601B
1.REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
11102A

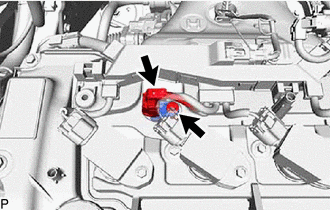

2.REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)
Disconnect the camshaft position sensor connector.
Using an 8 mm socket wrench, remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.
- NOTICE:
-
If the camshaft position sensor has been struck or dropped, replace it.

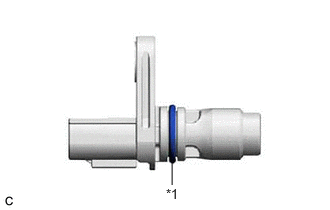

| *1 | O-ring |
Perform this procedure only when reusing the camshaft position sensor.
Remove the O-ring from the camshaft position sensor.
- NOTICE:
- ·
Make sure to only remove the O-ring with bare hands.
·When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor.
·If the O-ring groove of the camshaft position sensor is damaged, replace the camshaft position sensor with a new one.
11102A

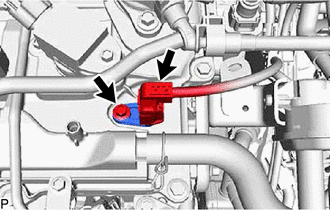

3.REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)
Disconnect the camshaft position sensor connector.
Using an 8 mm socket wrench, remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.
- NOTICE:
-
If the camshaft position sensor has been struck or dropped, replace it.
| *1 | O-ring |
Perform this procedure only when reusing the camshaft position sensor.
Remove the O-ring from the camshaft position sensor.
- NOTICE:
- ·
Make sure to only remove the O-ring with bare hands.
·When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor.
·If the O-ring groove of the camshaft position sensor is damaged, replace the camshaft position sensor with a new one.
