RM36D0EC _51 Engine / Hybrid System _083058 M20D-FKS ENGINE CONTROL _0401821 ACTIVE CONTROL ENGINE MOUNT(for Rear Side) G

M20D-FKS ENGINE CONTROL ACTIVE CONTROL ENGINE MOUNT(for Rear Side) ON-VEHICLE INSPECTION

CAUTION / NOTICE / HINT

HINT:: Refer to Problem Symptoms Table.; Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>PROBLEM SYMPTOMS TABLE201910,202304,_51,_083058,_0401834,RM100000001JE00,202304,999999,_51,_083058,_0401834,RM1000000029C70,

PROCEDURE

Hide Display 53895B 1.REMOVE FRONT FENDER SPLASH SHIELD RH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201910,202004,_51,_083059,_0403046,RM100000001JN1J_01_0303,202004,202304,_51,_083059,_0403046,RM100000001N2I4_01_0303,202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0303,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0303,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0303,

Hide Display 53896B 2.REMOVE FRONT FENDER SPLASH SHIELD LH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201910,202004,_51,_083059,_0403046,RM100000001JN1J_01_0004,202004,202304,_51,_083059,_0403046,RM100000001N2I4_01_0004,202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0004,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0004,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0004,

Hide Display 51441 3.REMOVE NO. 1 ENGINE UNDER COVER

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201910,202004,_51,_083059,_0403046,RM100000001JN1J_01_0003,202004,202304,_51,_083059,_0403046,RM100000001N2I4_01_0003,202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0003,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0003,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0003,

Hide Display 51420 4.REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201910,202004,_51,_083059,_0403046,RM100000001JN1J_01_0004,202004,202304,_51,_083059,_0403046,RM100000001N2I4_01_0004,202304,202405,_51,_083059,_0403046,RM1000000029XAE_01_0004,202405,202409,_51,_083059,_0403046,RM100000002JNSM_01_0004,202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0004,

Hide Display 12371A 5.INSPECT REAR ENGINE MOUNTING INSULATOR

a.

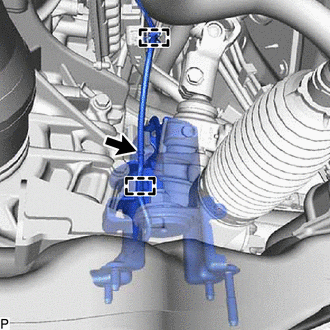

A433252

Detach the 2 clamps to disconnect the vacuum hose.

b.

Disconnect the vacuum hose.

c.

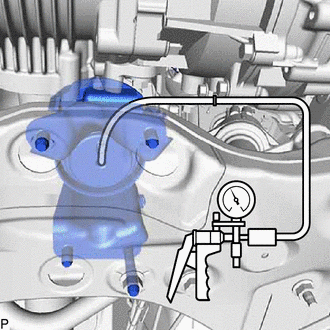

A433253

Using a vacuum pump, apply vacuum of 80 kPa (600 mmHg, 23.6 in.Hg) and wait for 1 minute.

d.

Check that there is no change in the needle movement of the vacuum pump gauge.

OK:: Vacuum pressure holds.

e.

Check that there is no fluid leakage caused by a break in the diaphragm.

f.

Connect the vacuum hose.

g.

Attach the 2 clamps to install the vacuum hose.

Hide Display 51420 6.INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION201910,202304,_51,_083059,_0403046,RM100000001JN1K_01_0292,202304,999999,_51,_083059,_0403046,RM1000000029XAF_01_0292,

Hide Display 51441 7.INSTALL NO. 1 ENGINE UNDER COVER

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION201910,202304,_51,_083059,_0403046,RM100000001JN1K_01_0293,202304,999999,_51,_083059,_0403046,RM1000000029XAF_01_0293,

Hide Display 53896B 8.INSTALL FRONT FENDER SPLASH SHIELD LH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION201910,202304,_51,_083059,_0403046,RM100000001JN1K_01_0330,202304,999999,_51,_083059,_0403046,RM1000000029XAF_01_0330,

Hide Display 53895B 9.INSTALL FRONT FENDER SPLASH SHIELD RH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION201910,202304,_51,_083059,_0403046,RM100000001JN1K_01_0331,202304,999999,_51,_083059,_0403046,RM1000000029XAF_01_0331,
