SEAT BELT  FRONT SEAT OUTER BELT ASSEMBLY  INSPECTION


PROCEDURE

Hide 1.INSPECT FRONT SEAT OUTER BELT ASSEMBLY

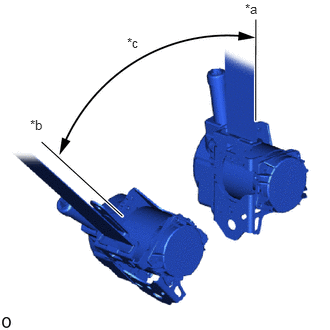

B536529C02
0.313,1.219 0.625,1.417 0.313,0.198 10 false *b 1.323,0.365 1.635,0.563 0.313,0.198 10 false *c 2.552,0.01 2.865,0.208 0.313,0.198 10 false *a
*a Unlock
*b Lock
*c 45°


a.

Before installing the front seat outer belt assembly, check the ELR.

NOTICE:

Do not disassemble the retractor.


i.

When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

If the result is not as specified, replace the front seat outer belt assembly.
