RM36D0EC
_58
Vehicle Interior
_083102
SEAT
_0401764
SEAT HEATER SWITCH(for Front Seat)
G
SEAT SEAT HEATER SWITCH(for Front Seat) INSPECTION
PROCEDURE
84751
1.INSPECT SEAT HEATER SWITCH (for LH Side)
a.
Inspect the illumination operation.
i.
1.469,3.229 1.469,2.917
true
1.948,3.229 1.948,2.917
true
0.75,2.063 1.063,2.219
0.313,0.156
10
false
*a
1.385,3.229 2,3.427
0.615,0.198
10
false
ILL+
1.875,3.229 2.49,3.427
0.615,0.198
10
false
ILL-

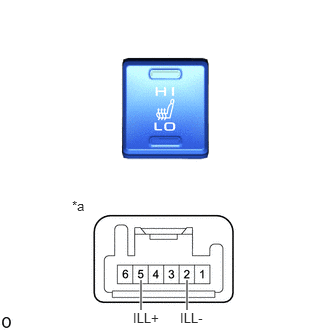

| *a | Component without harness connected
(Seat Heater Switch) |
Apply auxiliary battery voltage to the seat heater switch connector, and check that the seat heater switch LED illuminates.
- OK:
Measurement Condition Specified Condition If the result is not as specified, replace the seat heater switch.
Auxiliary battery positive (+) → 5 (ILL+)
Auxiliary battery negative (-) → 2 (ILL-)LED illuminates
84751
2.INSPECT SEAT HEATER SWITCH (for RH Side)
a.
Inspect the illumination operation.
i.
1.469,3.229 1.469,2.917
true
1.948,3.229 1.948,2.917
true
0.75,2.063 1.063,2.219
0.313,0.156
10
false
*a
1.385,3.229 2,3.427
0.615,0.198
10
false
ILL+
1.875,3.229 2.49,3.427
0.615,0.198
10
false
ILL-
| *a | Component without harness connected
(Seat Heater Switch) |
Apply auxiliary battery voltage to the seat heater switch connector, and check that the seat heater switch LED illuminates.
- OK:
Measurement Condition Specified Condition If the result is not as specified, replace the seat heater switch.
Auxiliary battery positive (+) → 5 (ILL+)
Auxiliary battery negative (-) → 2 (ILL-)LED illuminates
