RM36D0EC _59 Vehicle Exterior _083099 MIRROR (EXT) _0400992 OUTER MIRROR SWITCH A

MIRROR (EXT) OUTER MIRROR SWITCH REMOVAL

PROCEDURE

Hide Display 1.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201910,202004,_59,_083093,_0403687,RM100000001JUG7_02_0008,202004,202104,_59,_083093,_0403687,RM100000001MEB5_02_0008,202104,202304,_59,_083093,_0403687,RM100000001WOLG_02_0008,202304,202405,_59,_083093,_0403687,RM1000000029SAO_02_0008,202405,202409,_59,_083093,_0403687,RM100000002LU2N_02_0008,202409,999999,_59,_083093,_0403687,RM100000002NG1N_02_0008,

Hide Display 84870A 2.REMOVE OUTER MIRROR SWITCH ASSEMBLY

a.

B525837C01

0,0 0,0 false

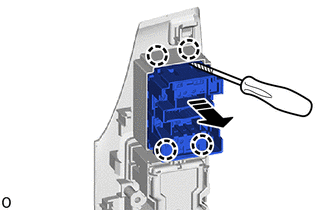

	Remove in this Direction
	Protective Tape

Using a thin-bladed screwdriver, detach the claw and remove the outer mirror switch assembly.

HINT:: Tape the thin-bladed screwdriver tip before use.
