MIRROR (EXT)
_0400991
OUTER REAR VIEW MIRROR COVER
A
MIRROR (EXT) OUTER REAR VIEW MIRROR COVER INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
86790F
1.INSTALL SIDE TELEVISION CAMERA ASSEMBLY LH (w/ Panoramic View Monitor System)
81740
2.INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY LH
8794A
3.INSTALL NO. 2 OUTER MIRROR COVER LH
a.

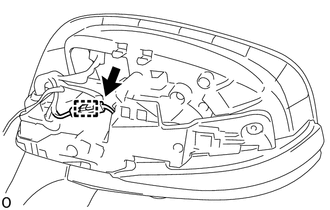

Connect the side turn signal light connector.
b.

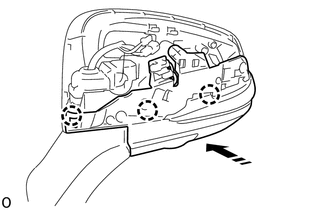

0,0 0,0
false
|
Install in this Direction |
Attach the claw and install the No. 2 outer mirror cover LH.
c.
Install the 2 screws.
d.
w/ Panoramic View Monitor System:
i.
Connect the connector.
ii.
Attach the clamp.
87945
4.INSTALL OUTER MIRROR COVER LH
a.

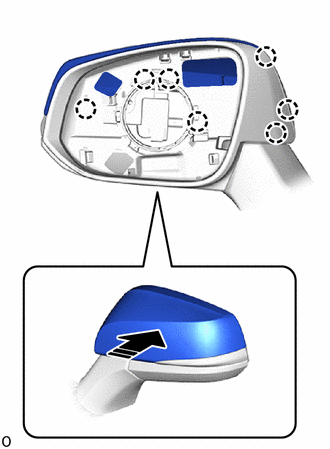

0,0 0,0
false
|
|
Install in this Direction |
Attach the claw and install the outer mirror cover LH.
