RM36D0EC _59 Vehicle Exterior _083108 SLIDING ROOF / CONVERTIBLE _0400984 SLIDING ROOF HOUSING(for Panoramic Moon Roof) A

SLIDING ROOF / CONVERTIBLE  SLIDING ROOF HOUSING(for Panoramic Moon Roof)  REASSEMBLY


PROCEDURE

Hide 63306 1.INSTALL SUNSHADE TRIM SUB-ASSEMBLY

a.
B535957
1.896,0.833 1.365,0.479 true 0.781,1.76 1.24,1.76 false 0.615,1.667 0.927,1.823 0.313,0.156 10 false *1 1.198,0.375 1.51,0.531 0.313,0.156 10 false *a
*1 No. 1 Sliding Roof Shoe Sub-assembly
*a Cutout


Make sure that the No. 1 sliding roof shoe sub-assembly is positioned as shown in the illustration.

HINT:

Use the same procedure for the other side.



b.

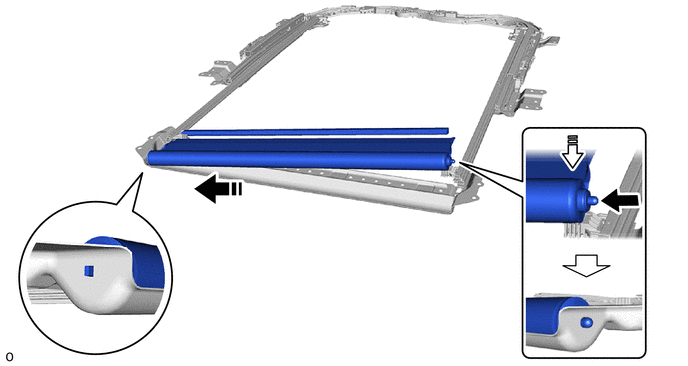

Attach the plug cap and press the retractor cap down in the direction of the arrow (1) shown in the illustration. Then, insert the retractor cap to install the sunshade trim sub-assembly.

B527730
6.188,2.042 6.427,1.573 false 0.917,2.833 0.823,3.385 true 0.75,3.427 1.063,3.625 0.313,0.198 10 false *a 6.396,1.375 6.708,1.573 0.313,0.198 10 false *b
*a Plug Cap *b Retractor Cap
V100135

Push
V113147

Install in this Direction (1)
V113148

Install in this Direction (2) - -



c.

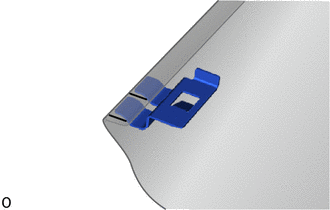

B535958

Install the sliding roof sunshade plate.

HINT:

Use the same procedure for the other side.



d.

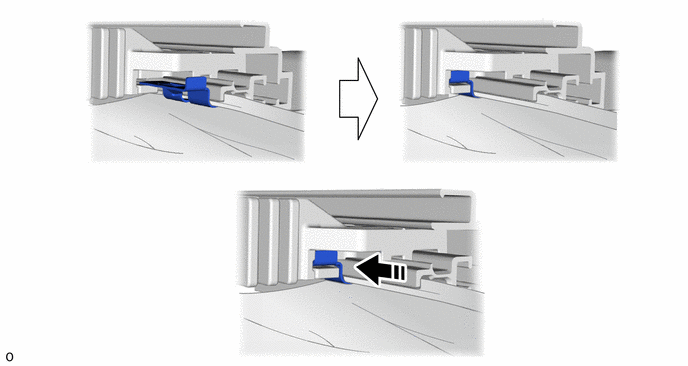

Install the sliding roof sunshade plate LH to the sunshade trim sub-assembly as shown in the illustration.

B527731
2.979,3.156 3.385,2.729 true 2.792,3.167 2.99,3.344 0.198,0.177 10 true *1
*1 Sliding Roof Sunshade Plate LH - -
V113147

Install in this Direction - -


HINT:

Use the same procedure for the other side.



e.

Attach the claw and install part A as shown in the illustration.

B527732
1.198,2.521 1.188,2.833 true 5.927,2.802 5.771,3.104 true 1.135,2.854 1.448,3.052 0.313,0.198 10 false *a 5.615,3.115 5.927,3.313 0.313,0.198 10 false *a 3.458,1.917 3.771,2.115 0.313,0.198 10 false *a
*a Part A - -
V113147

Install in this Direction - -



f.

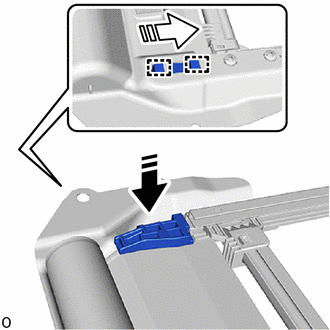

B529430
1.677,2.583 1.802,2.823 true 1.771,2.896 2.083,3.094 0.313,0.198 10 true *1
*1 Sliding Roof Sunshade Guide LH
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Install the sliding roof sunshade guide LH in the direction indicated by the arrow (1) shown in the illustration.

HINT:

Use the same procedure for the other side.



g.

Attach the guide in the direction indicated by the arrow (2) shown in the illustration.

HINT:

Use the same procedure for the other side.



Hide 63202H 2.INSTALL SLIDE ROOF RAIL SUB-ASSEMBLY

a.

Install the slide roof rail sub-assembly to the sliding roof housing panel with the 16 nuts.

Torque:
6.3 N*m (64 kgf*cm, 56 in.*lbf)

B527724


Hide 63219A 3.INSTALL REAR SLIDING ROOF GARNISH

CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts, as touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



HINT:

Perform the following procedures if replacing the rear sliding roof garnish.


a.

Clean the sliding roof housing panel.

i.

Using a heat light, heat the sliding roof housing panel.

Heating Temperature
Item Temperature
Sliding Roof Housing Panel 20 to 30°C (68 to 86°F)

NOTICE:

Do not heat the rear sliding housing panel excessively.



ii.

Remove the double-sided tape from the sliding roof housing panel.


iii.

Clean off any tape adhesive residue with cleaner.



b.

Coat the installation area of the sliding roof housing panel with primer.


c.

Remove the release paper from a new rear sliding roof garnish.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.



d.

Attach the guide to install the rear sliding roof garnish.

B527723
0,0 0,0 false
V100155

Double-sided Tape - -



Hide 63260J 4.INSTALL SLIDING ROOF DRIVE GEAR ASSEMBLY (for Roof Sunshade)

a.

Apply MP grease to the gear of the sliding roof drive gear assembly.


b.
B527722

Temporarily install the sliding roof drive gear assembly with the 2 bolts.


c.

Tighten the 2 bolts.

NOTICE:

While balancing the bolt upright, tighten it evenly.


Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


Hide 63260K 5.INSTALL SLIDING ROOF DRIVE GEAR ASSEMBLY (for Sliding Roof Glass)

a.

Apply MP grease to the gear of the sliding roof drive gear assembly.


b.
B527721

Temporarily install the sliding roof drive gear assembly with the 2 bolts.


c.

Tighten the 2 bolts.

NOTICE:

While balancing the bolt upright, tighten it evenly.


Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


Hide 82172 6.INSTALL NO. 2 ROOF WIRE

a.
B527720
1.625,1.229 2.521,0.49 2.521,0.49 2.26,1.177 true 2.625,0.302 2.979,0.469 0.354,0.167 10 false *a 2.115,1.677 2.427,1.833 0.313,0.156 10 false *b
*a Wire Harness Clamp
*b Connector Clamp


Attach the connector clamp and wire harness clamp and install the No. 2 roof wire.


Hide 63231C 7.INSTALL ROOM LIGHT BRACKET

a.
B527719
0.906,0.375 1.281,0.615 0.375,0.24 10 false *a
*a Backside
V100135

Nut
V100136

Connector


Connect the connector and install the room light bracket.


b.

Install the room light bracket with the 4 nuts.

Torque:
6.3 N*m (64 kgf*cm, 56 in.*lbf)


Hide 63201A 8.INSTALL SLIDING ROOF PANEL SUB-ASSEMBLY

a.

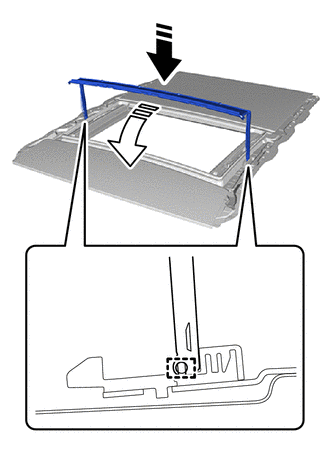

B527733
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Move the sliding roof panel sub-assembly in the direction indicated by the arrow (1) shown in the illustration to attach the 2 guides.


b.

Move the sliding roof panel sub-assembly in the direction indicated by the arrow (2) shown in the illustration.


c.

Attach the guide and claw to install the sliding roof panel sub-assembly.

B527717
