WINDOW / GLASS  QUARTER WINDOW GLASS  INSTALLATION

0.573,0.656 1.031,0.292 false 1.063,0.208 1.375,0.365 0.313,0.156 10 false *a 3.208,0.646 3.365,0.844 0.156,0.198 10 false a

*a	Vehicle Body
	Adhesive

Using a knife, cut away excess adhesive on the contact surface of the vehicle body as shown in the illustration.

Standard Dimension:

Area	Dimension
a	1.0 to 3.0 mm (0.0394 to 0.118 in.)

NOTICE:

Be careful not to damage the vehicle body.

HINT:

Leave approximately of adhesive on the vehicle body.

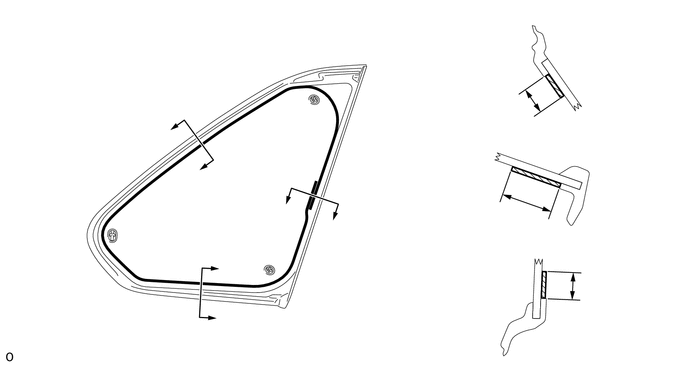

Using a brush or sponge, coat the glass primer as shown in the illustration.

NOTICE:

Do not apply too much primer.

2.948,1.771 3.104,1.969 0.156,0.198 10 false B 1.969,1.094 2.125,1.292 0.156,0.198 10 false A 1.948,2.656 2.104,2.854 0.156,0.198 10 false C 3.563,1.99 3.719,2.188 0.156,0.198 10 false B 1.917,3.208 2.073,3.406 0.156,0.198 10 false C 4.76,0.25 5.219,0.448 0.458,0.198 10 false A-A 4.802,1.49 5.26,1.688 0.458,0.198 10 false B-B 4.844,2.656 5.302,2.854 0.458,0.198 10 false C-C 5.385,1.042 5.542,1.24 0.156,0.198 10 false a 6.135,2.917 6.292,3.115 0.156,0.198 10 false a 5.385,2.125 5.542,2.323 0.156,0.198 10 false b 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.292,1.521 2.448,1.719 0.156,0.198 10 false A

*a	Backside	-	-
	Glass Primer	-	-

Standard Dimension:

Area	Dimension
a	9.0 mm (0.354 in.)
b	18.6 mm (0.732 in.)

1.354,0.583 1.177,0.479 false 2.917,0.375 2.521,0.542 true 0.583,0.667 0.74,0.854 0.156,0.188 10 false a 1.271,1.448 1.417,1.635 0.146,0.188 10 false a 1.125,0.865 1.25,1.063 0.125,0.198 10 false b 0.771,1.031 0.917,1.177 0.146,0.146 10 false b 1.406,0.531 1.604,0.698 0.198,0.167 10 false *b 2.979,0.302 3.177,0.469 0.198,0.167 10 false *a

*a	Sealer Gun
*b	Nozzle
	Adhesive

Cut off the tip of the cartridge nozzle as shown in the illustration.

Standard Dimension:

Area	Dimension
a	12 mm (0.472 in.) to 15 mm (0.591 in.)
b	8.0 mm (0.315 in.) to 11 mm (0.433 in.)

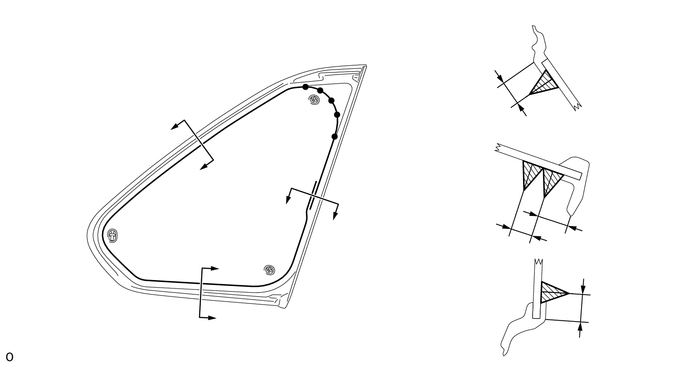

Apply adhesive to the glass as shown in the illustration.

5.542,0.635 5.26,0.5 true 5.948,2.25 6.281,2.479 true 5.688,3.333 5.792,3.552 false 3.5,1.427 3.875,1.688 true 3.094,2.563 3.469,2.823 true 5.74,0.823 6.24,0.823 true 5.083,3.229 5.635,3.031 true 5.083,3.219 5.635,3.021 true 5.542,1.708 5.99,1.469 5.99,1.469 5.74,1.792 true 0.052,0.083 0.365,0.281 0.313,0.198 10 false *a 1.813,1.063 1.969,1.26 0.156,0.198 10 false A 2.25,1.667 2.406,1.865 0.156,0.198 10 false A 2.927,1.792 3.083,1.99 0.156,0.198 10 false B 3.563,1.969 3.719,2.167 0.156,0.198 10 false B 1.938,2.688 2.094,2.885 0.156,0.198 10 false C 1.927,3.229 2.083,3.427 0.156,0.198 10 false C 4.698,0.125 5.156,0.323 0.458,0.198 10 false A-A 4.698,1.479 5.156,1.677 0.458,0.198 10 false B-B 4.76,2.719 5.219,2.917 0.458,0.198 10 false C-C 5.146,1 5.302,1.198 0.156,0.198 10 false a 5.323,2.5 5.479,2.698 0.156,0.198 10 false d 6.156,3.146 6.313,3.344 0.156,0.198 10 false c 5.708,2.323 5.865,2.521 0.156,0.198 10 false b 3.521,2.792 3.833,2.99 0.313,0.198 10 false *b 6.333,2.469 6.646,2.667 0.313,0.198 10 false *d 5.75,3.604 6.063,3.802 0.313,0.198 10 false *d 5.073,0.365 5.385,0.563 0.313,0.198 10 false *d 3.948,1.698 4.26,1.896 0.313,0.198 10 false *c 6.313,0.76 6.625,0.958 0.313,0.198 10 false *b 4.885,3.167 5.198,3.365 0.313,0.198 10 false *b 6.031,1.313 6.344,1.51 0.313,0.198 10 false *b

*a	Backside	*b	Adhesive Positioning Center
*c	Ceramic Notch	*d	R End
	Adhesive	-	-

Standard Dimension:

Area	Dimension
a	8.4 mm (0.331 in.)
b	12.1 mm (0.476 in.)
c	9.7 mm (0.382 in.)
d	8.0 mm (0.315 in.)

Using suction cups, attach the clip to install the quarter window assembly LH to the vehicle body.

NOTICE:

·

Allow the primer to dry for 3 minutes or more.

·

Check that the clip is attached to the vehicle body correctly.
