EXTERIOR PANELS / TRIM QUARTER GARNISH INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 62792V 1.INSTALL UPPER QUARTER WINDOW MOULDING LH

HINT:: When installing the upper quarter window moulding LH, heat the quarter panel and upper quarter window moulding LH using a heat light.

Standard:

Item	Temperature
Quarter Panel	40 to 60°C (104 to 140°F)
Upper Quarter Window Moulding LH	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the quarter panel and upper quarter window moulding LH excessively.

Clean the quarter panel surface.

Using a heat light, heat the quarter panel surface.

ii.

Remove any remaining double-sided tape from the quarter panel.

iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:: ·

Installing the upper quarter window moulding LH with any double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

Remove the peeling paper of a new upper quarter window moulding LH trying not to touch the adhesional surface.

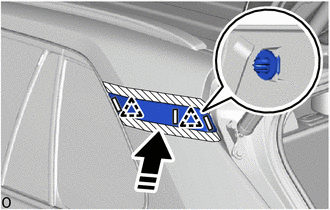

0.938,1.26 1.104,1.26 1.104,1.26 1.188,1.094 true 1.479,0.854 1.646,0.854 1.646,0.854 1.813,1.188 true 2.167,1.25 2.417,1.25 2.417,1.25 2.417,1.5 true 1.25,0.75 1.448,0.948 0.198,0.198 10 true *a 2.354,1.531 2.552,1.729 0.198,0.198 10 true *a 0.802,1.177 1,1.375 0.198,0.198 10 true *a

*a	Double-sided Tape
	Install in this Direction

Attach the clip and double-sided tape to install the upper quarter window moulding LH as shown in the illustration.

HINT:: Press the upper quarter window moulding LH firmly to install it.

Remove the protective tape.
