RM36D0EC _59 Vehicle Exterior _083111 EXTERIOR PANELS / TRIM _0400770 QUARTER GARNISH A

EXTERIOR PANELS / TRIM  QUARTER GARNISH  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 62792V 1.REMOVE UPPER QUARTER WINDOW MOULDING LH

HINT:

When removing the upper quarter window moulding LH, if the double-sided tape is difficult to remove, heat the quarter panel and upper quarter window moulding LH using a heat light.


Standard:
Item Temperature
Quarter Panel 40 to 60°C (104 to 140°F)
Upper Quarter Window Moulding LH


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the upper quarter window moulding LH excessively.


a.

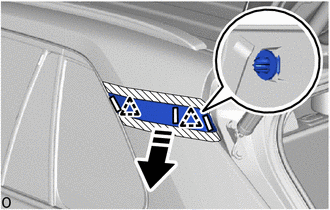

B525764
0.781,1.073 1.167,1.083 true 1.813,1.156 1.833,0.833 1.833,0.833 1.917,0.833 true 2.167,1.323 2.552,1.333 true 0.615,0.948 0.823,1.125 0.208,0.177 10 true *a 1.917,0.74 2.125,0.917 0.208,0.177 10 true *a 2.5,1.24 2.75,1.417 0.25,0.177 10 true *a
*a Double-sided Tape
V113147

Remove in this Direction
V100155

Protective Tape


Put protective tape around the upper quarter window moulding LH.


b.

Detach the clip and double-sided tape to remove the upper quarter window moulding LH as shown in the illustration.

NOTICE:

The upper quarter window moulding LH must not be reused.
