EXTERIOR PANELS / TRIM  BACK DOOR OUTSIDE GARNISH(for Lower Side)  REMOVAL

67939B 1.REMOVE BACK DOOR CENTER GARNISH

67938A 2.REMOVE BACK DOOR SIDE GARNISH LH

67937B 3.REMOVE BACK DOOR SIDE GARNISH RH

67199 4.REMOVE BACK DOOR HANDLE COVER

67750 5.REMOVE BACK DOOR TRIM BOARD ASSEMBLY

76802E 6.REMOVE LOWER BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

a.

Remove the bolt.

b.

0,0 0,0 false

Protective Tape

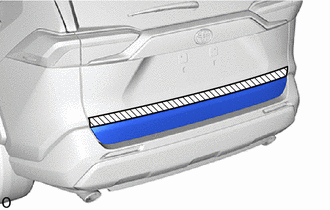

Apply protective tape around the lower back door outside garnish sub-assembly.

c.

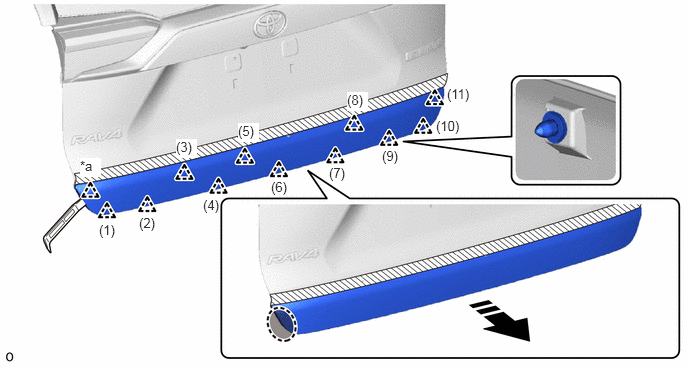

Using moulding remover A, detach clip A.

0.833,1.646 1.052,1.844 0.219,0.198 10 true *a 1.031,2.313 1.25,2.51 0.219,0.198 10 false (1) 1.448,2.24 1.667,2.438 0.219,0.198 10 false (2) 1.833,1.448 2.052,1.646 0.219,0.198 10 true (3) 2.115,2.052 2.333,2.25 0.219,0.198 10 false (4) 2.479,1.281 2.698,1.479 0.219,0.198 10 true (5) 2.823,1.865 3.042,2.063 0.219,0.198 10 false (6) 3.427,1.719 3.646,1.917 0.219,0.198 10 false (7) 3.615,0.958 3.833,1.156 0.219,0.198 10 true (8) 3.979,1.542 4.198,1.74 0.219,0.198 10 false (9) 4.542,1.229 4.906,1.458 0.365,0.229 10 false (10) 4.656,0.896 4.969,1.135 0.313,0.24 10 false (11)

*a	Clip A	-	-
	Place Hands Here		Remove in this Direction

d.

Placing your hand in the gap, pull the lower back door outside garnish sub-assembly to detach the clip starting from the left in the order shown in the illustration.
