RM36D0EC _59 Vehicle Exterior _083111 EXTERIOR PANELS / TRIM _0400756 SIDE MUDGUARD A

EXTERIOR PANELS / TRIM  SIDE MUDGUARD  REASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 75895C 1.INSTALL NO. 3 MOULDING TAPE

HINT:

When installing the No. 3 moulding tape, heat the side mudguard LH using a heat light.


Standard:
Item Temperature
Side Mudguard LH 20 to 30°C (68 to 86°F)


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the side mudguard LH excessively.


a.

When reusing the side mudguard sub-assembly LH:

i.

Using a heat light, heat the side mudguard LH surface.


ii.

Remove any remaining double-sided tape from the side mudguard sub-assembly LH.


iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the No. 3 moulding tape with any double-sided tape remaining may cause poor adhesion. Perform this procedure until sufficiently removed it.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

·

Also, clean the surface of the new side mudguard LH.





b.
B525739
1.833,0.5 2.333,0.5 true 2.406,0.427 2.719,0.625 0.313,0.198 10 false *a
*a Mark-off Line
V100145

Primer


Apply primer to the side mudguard LH on the installation area of the No. 3 moulding tape using a brush or felt.

NOTICE:
·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the No. 3 moulding tape has been attached.




c.

Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.


Recommended drying time:

10 minutes or more (at 23°C (73°F))



d.

Remove the release paper of a new No. 3 moulding tape trying not to touch the adhesional surface.


e.
B525738
0.5,0.25 0.833,0.25 0.833,0.25 0.833,0.583 true 0.302,0.167 0.531,0.354 0.229,0.188 10 true *a
*a Mark-off Line

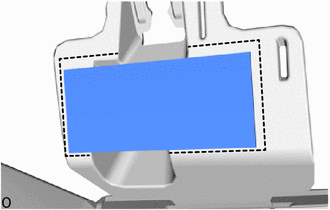

Install the No. 3 moulding tape in the position shown in the illustration.


f.
B526254
0,0 0,0 false
V113147

Install in this Direction


Attach the double-sided tape areas.

HINT:

Press the double-sided tape firmly to install it.



Hide 53852D 2.INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

HINT:

When installing the front wheel opening extension pad LH, heat the side mudguard LH using a heat light.


Standard:
Item Temperature
Side Mudguard LH 20 to 30°C (68 to 86°F)


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the side mudguard LH excessively.


a.

When reusing the side mudguard sub-assembly LH:

i.

Using a heat light, heat the side mudguard LH surface.


ii.

Remove any remaining double-sided tape from the side mudguard sub-assembly LH.


iii.

Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the side mudguard LH with any double-sided tape remaining may cause poor adhesion. Perform this procedure until sufficiently removed it.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

·

Also, clean the surface of the new side mudguard LH.





b.
B525741
1.917,0.667 1.917,0.25 1.917,0.25 2.333,0.25 false 2.396,0.167 2.708,0.365 0.313,0.198 10 false *a
*a Mark-off Line
V100145

Primer


Apply primer to the side mudguard LH on the installation area of the front wheel opening extension pad LH using a brush or felt.

NOTICE:
·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the front wheel opening extension pad LH has been attached.




c.

Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.


Recommended drying time:

10 minutes or more (at 23°C (73°F))



d.

Remove the release paper of a new front wheel opening extension pad LH trying not to touch the adhesional surface.


e.
B525742
0.5,1.448 0.688,1.698 0.688,1.698 0.854,1.448 true 2.792,1.5 2.896,1.719 2.896,1.719 3,1.51 true 0.604,1.729 0.802,1.896 0.198,0.167 10 true *a 2.823,1.75 3.021,1.917 0.198,0.167 10 true *a
*a Mark-off Line
V113147

Install in this Direction

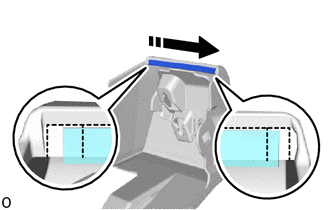

Align the front wheel opening extension pad LH with the mark-off line of the side mudguard sub-assembly LH.

HINT:
·

Press the front wheel opening extension pad LH firmly to install it.

·

Make sure that the end of the front wheel opening extension pad LH is between the mark-off lines.
