RM36D0EC _59 Vehicle Exterior _083111 EXTERIOR PANELS / TRIM _0400753 REAR SPOILER A

EXTERIOR PANELS / TRIM  REAR SPOILER  REMOVAL


PROCEDURE

Hide 67937B 3.REMOVE BACK DOOR SIDE GARNISH RH

HINT:

Use the same procedure described for the LH side.


Hide 76085 4.REMOVE REAR SPOILER SUB-ASSEMBLY

a.
B525792

Remove the 4 hole plugs.


b.

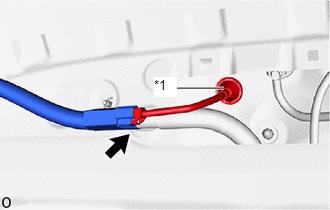

B525793C01
2.333,0.917 1.75,0.917 true 1.604,0.802 1.844,1.01 0.24,0.208 10 true *1
*1 Grommet


Disconnect the connector.


c.

Detach the grommet.


d.
B525945

Remove the 6 nuts.


e.
B525576

Remove the screw.

HINT:

Use the same procedure for the screw on the other side.



f.

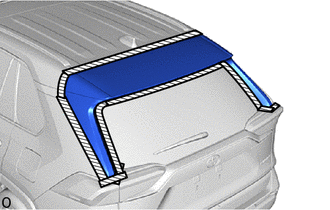

B525795C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the rear spoiler sub-assembly.


g.

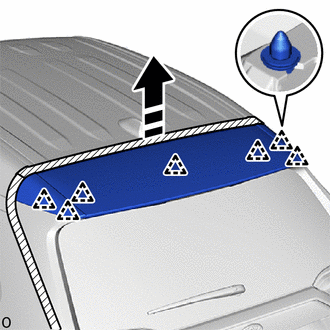

B525577C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the clip and remove the rear spoiler sub-assembly as shown in the illustration.


h.

When reusing the rear spoiler sub-assembly:

i.

Remove the 3 clips.

NOTICE:

Replace the clip with a new one.


B585305



Hide 76088B 5.REMOVE REAR SIDE SPOILER SUB-ASSEMBLY LH

a.

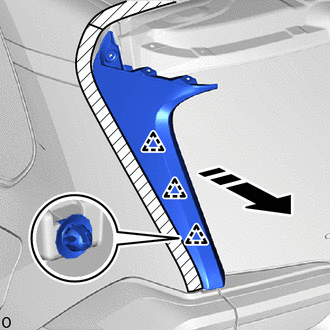

B525579C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the clip and rear side spoiler sub-assembly LH as shown in the illustration.


Hide 76087B 6.REMOVE REAR SIDE SPOILER SUB-ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.
