RM36D0EC _58 Vehicle Interior _083094 THEFT DETERRENT / KEYLESS ENTRY _0400685 SECURITY HORN ASSEMBLY A

THEFT DETERRENT / KEYLESS ENTRY  SECURITY HORN ASSEMBLY  INSTALLATION


PROCEDURE

Hide 86510A 1.INSTALL SECURITY HORN ASSEMBLY

NOTICE:

Do not reuse parts if dropped or subjected to any strong impact.


a.
E406803

Connect the connector.


b.

Attach the clamp.


c.

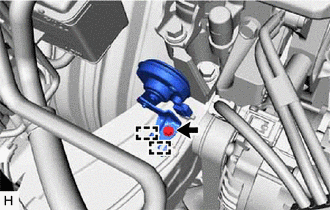

E406802

Attach the guide to install the security horn assembly with the bolt.

Torque:
8.3 N*m (85 kgf*cm, 73 in.*lbf)
