RM36D0EC _58 Vehicle Interior _083094 THEFT DETERRENT / KEYLESS ENTRY _0400684 TRANSPONDER KEY AMPLIFIER A

THEFT DETERRENT / KEYLESS ENTRY TRANSPONDER KEY AMPLIFIER REMOVAL

PROCEDURE

Hide Display 45287 1.REMOVE LOWER STEERING COLUMN COVER

Hide Display 89782 2.REMOVE TRANSPONDER KEY COIL

0,0 0,0 false

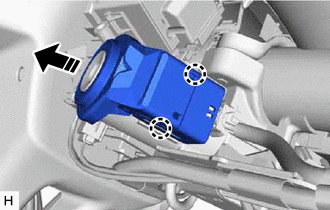

Remove in this Direction

Detach the claw and remove the transponder key coil as shown in the illustration.

Disconnect the connector.
