RM36D0EC _58 Vehicle Interior _083097 METER / GAUGE / DISPLAY _0400582 COMBINATION METER A

METER / GAUGE / DISPLAY  COMBINATION METER  DISASSEMBLY


CAUTION / NOTICE / HINT

NOTICE:

Do not allow any dirt (fingerprints, grease, etc.) to adhere to the meter glass. If the glass is dirty, wipe it clean with a soft cloth.


PROCEDURE

Hide 83138G 1.REMOVE COMBINATION METER GLASS

a.

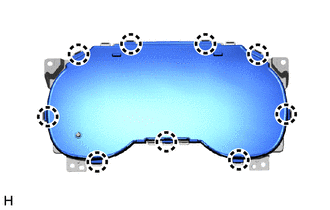

B523296

Detach the claw and remove the combination meter glass.
