RM3660EC _55 Steering _080762 STEERING COLUMN _0391590 STEERING WHEEL A

STEERING COLUMN  STEERING WHEEL  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during steering wheel assembly removal/installation are shown below.

NOTICE:
·

Do not remove/install the spiral cable with sensor sub-assembly with the auxiliary battery connected and the ignition switch (for Gasoline Model) or power switch (for HV Model) on (IG).

·

Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the auxiliary battery connected and the ignition switch (for Gasoline Model) or power switch (for HV Model) on (IG).

·

Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.

·

After turning the ignition switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY



CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven (for HV Model)
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedures Link
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)

Learning completes when vehicle is driven (for Gasoline Model)
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedures Link
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)
Pre-collision System Perform steering sensor zero point calibration (Click here)
Lane Tracing Assist System
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)


PROCEDURE

Hide 1.ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

Hide 3.REMOVE STEERING WHEEL ASSEMBLY

a.

Disconnect each connector from the spiral cable with sensor sub-assembly.


b.
C402571

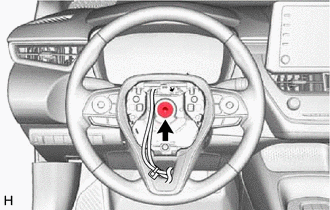

Using a 10 mm hexagon socket wrench, remove the steering wheel assembly set bolt.


c.
C402572C01
1.698,1.063 0.354,1.073 0.354,1.073 1.688,1.021 true 0.188,0.969 0.5,1.125 0.313,0.156 10 false *a
*a Matchmark


Put matchmarks on the steering wheel assembly and steering main shaft.


d.

Temporarily install the steering wheel assembly set bolt.

NOTICE:

Do not overtighten the steering wheel assembly set bolt.



e.
C402573C01
0.438,0.875 1.563,0.875 true 0.427,1.26 1.073,1.26 true 3.167,3.604 3.344,3.833 0.177,0.229 10 false *a 0.958,4.052 1.115,4.219 0.156,0.167 10 true *b 0.135,0.792 0.594,0.99 0.458,0.198 10 false SST 0.135,1.177 0.594,1.375 0.458,0.198 10 false SST
*a Turn
*b Hold

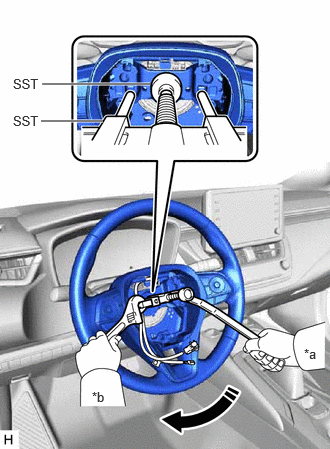

Using SST, separate the steering wheel assembly.

SST
09950-50013  (09951-05010, 09952-05010, 09953-05020, 09954-05031, 09957-04010)
09950-60011  (09951-00330)

NOTICE:

Apply a small amount of grease to the threads and tip of SST (09953-05020) before use.



f.

Remove the steering wheel assembly set bolt and steering wheel assembly.


Hide 5.REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) (w/ Shift Paddle Switch)
