SUPPLEMENTAL RESTRAINT SYSTEMS  SIDE AIRBAG SENSOR  COMPONENTS

ILLUSTRATION

5.229,2.167 5.646,2.167 false 5.698,2.083 6.01,2.281 0.313,0.198 10 false *1 0.156,0.115 0.573,0.417 0.417,0.302 12 false *A

*A	for M20F-FXS, M20G-FXS	-	-
*1	LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY	-	-

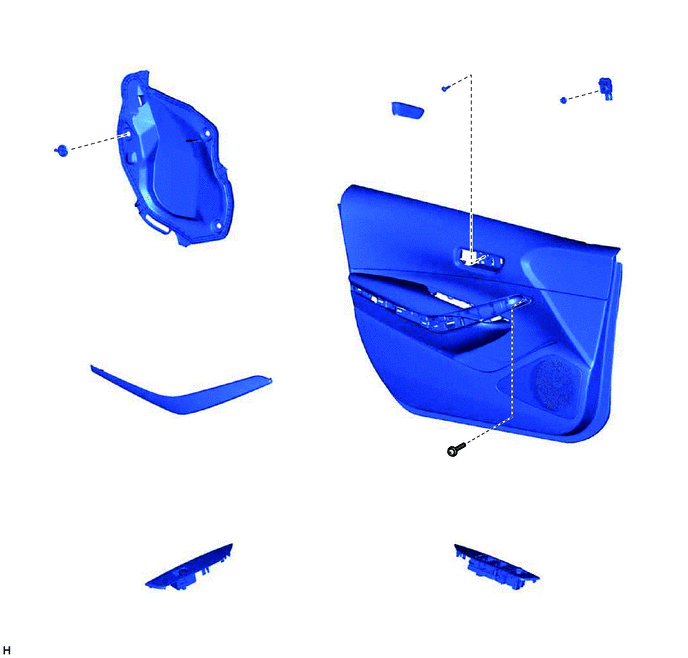

ILLUSTRATION

5.385,1.396 6.365,1.625 0.979,0.229 1.052,5.5 2.99,6.5 1.938,1 4.344,5.5 6.323,6.5 1.979,1 5.344,1.354 6.406,1.667 1.063,0.313 0.656,1.615 0.656,2.125 false 3.073,3.365 3.719,3.365 false 2.271,1.448 2.917,1.448 false 1.083,4.542 1.604,4.542 1.604,4.542 1.813,4.281 false 5.438,6.104 5.625,6.281 5.625,6.281 5.99,6.281 false 1.979,6.073 2.302,6.375 2.302,6.375 2.604,6.375 false 5.865,1.063 5.865,1.396 false 3.438,1.125 4.083,1.125 false 5.719,0.51 6.021,0.51 6.021,0.51 6.271,0.833 false 1.104,5.563 1.417,5.781 0.313,0.219 12 false *B 4.396,5.563 4.656,5.802 0.26,0.24 12 false *A 0.917,4.458 1.135,4.688 0.219,0.229 10 false *1 3.26,1.042 3.531,1.229 0.271,0.188 10 false *2 2.948,1.375 3.146,1.573 0.198,0.198 10 false *3 2.906,3.271 3.167,3.49 0.26,0.219 10 false *4 2.625,6.292 2.865,6.5 0.24,0.208 10 false *6 6.031,6.198 6.302,6.417 0.271,0.219 10 false *5 5.552,0.427 5.802,0.698 0.25,0.271 10 false *7 0.583,2.135 0.802,2.354 0.219,0.219 10 false *8 5.438,1.438 6.417,1.625 0.979,0.188 8 false 9.0 (92, 80 in.*lbf) 0.719,1.573 0.958,1.833 0.24,0.26 10 false x 3 4.813,4.667 5.052,4.927 0.24,0.26 10 false x 2

*A	for Driver Side	*B	for Front Passenger Side
*1	FRONT DOOR ASSIST GRIP ASSEMBLY	*2	FRONT DOOR INSIDE HANDLE BEZEL PLUG
*3	FRONT DOOR SERVICE HOLE COVER	*4	FRONT DOOR TRIM BOARD SUB-ASSEMBLY
*5	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	*6	POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
*7	SIDE AIRBAG PRESSURE SENSOR	*8	FRONT DOOR WEATHERSTRIP CLIP
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	-	-
