RM3660EC _59 Vehicle Exterior _080784 LIGHTING (EXT) _0393155 HEADLIGHT ASSEMBLY(for TFTM Made) A

LIGHTING (EXT)  HEADLIGHT ASSEMBLY(for TFTM Made)  REASSEMBLY


CAUTION / NOTICE / HINT

PROCEDURE

Hide 1.INSTALL FRONT TURN SIGNAL LIGHT SOCKET (for Bulb Type Turn Signal Light)

Hide 2.INSTALL FRONT TURN SIGNAL LIGHT BULB (for Bulb Type Turn Signal Light)

a.

Install the front turn signal light bulb to the front turn signal light socket.


b.
E512722C01
0,0 0,0 false
V113147

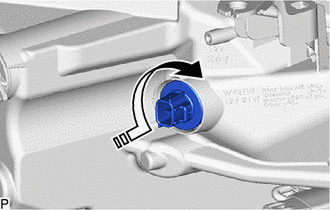

Install in this Direction


Turn the front turn signal light socket with the front turn signal light bulb as shown in the illustration to install them as a unit.
