LIGHTING (EXT)
_0393155
HEADLIGHT ASSEMBLY(for TFTM Made)
G
LIGHTING (EXT) HEADLIGHT ASSEMBLY(for TFTM Made) INSPECTION
PROCEDURE
81150
1.INSPECT HEADLIGHT ASSEMBLY LH
a.
for LED 6 Pin Type:
i.
Illumination Inspection
1.
1.708,0.917 1.708,0.333
true
1.448,0.917 1.333,0.333
true
2,0.948 2.167,0.333
true
2.083,1.833 1.969,1.25
true
1.344,1.823 1.448,1.24
true
0.167,0.167 0.479,0.323
0.313,0.156
10
false
*a
1.646,0.167 1.958,0.365
0.313,0.198
10
false
LO
1.198,0.167 1.583,0.396
0.385,0.229
10
false
DRL
2.167,0.167 2.333,0.417
0.167,0.25
10
false
E
2,1.854 2.385,2.083
0.385,0.229
10
false
CLL
1.198,1.854 1.583,2.083
0.385,0.229
10
false
HI
| *a | Component without harness connected
(Headlight Assembly LH) |
Apply auxiliary battery voltage to the headlight assembly LH and check that the light illuminates.
- OK:
Measurement Condition Specified Condition Auxiliary battery positive (+) → Terminal 2 (LO)
Auxiliary battery negative (-) → Terminal 1 (E)Lo beam headlight illuminates Auxiliary battery positive (+) → Terminal 3 (DRL)
Auxiliary battery negative (-) → Terminal 1 (E)Daytime running light illuminates Auxiliary battery positive (+) → Terminal 4 (CLL)
Auxiliary battery negative (-) → Terminal 1 (E)Clearance light illuminates Auxiliary battery positive (+) → Terminal 2 (LO)
Auxiliary battery negative (-) → Terminal 6 (HI)
Auxiliary battery negative (-) → Terminal 1 (E)Lo/Hi beam headlight illuminates
If the result is not as specified, replace the headlight assembly LH.
b.

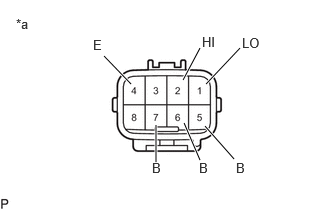

for LED 8 Pin Type:
i.
Illumination Inspection
1.
2.5,0.5 2.146,0.875
true
1.906,0.833 2.083,0.5
true
1.365,0.875 1.083,0.583
true
2.083,1.667 1.917,1.281
true
1.625,1.688 1.625,1.302
true
2.438,1.656 2.135,1.313
true
0.167,0.167 0.479,0.323
0.313,0.156
10
false
*a
2.458,1.667 2.802,1.865
0.344,0.198
10
false
B
2.521,0.365 2.896,0.573
0.375,0.208
10
false
LO
2.104,0.354 2.438,0.521
0.333,0.167
10
false
HI
0.969,0.385 1.313,0.583
0.344,0.198
10
false
E
1.583,1.667 1.927,1.865
0.344,0.198
10
false
B
2.073,1.667 2.417,1.865
0.344,0.198
10
false
B
| *a | Component without harness connected
(Headlight Assembly LH) |
Apply auxiliary battery voltage to the headlight assembly LH and check that the light illuminates.
- OK:
Measurement Condition Specified Condition Auxiliary battery positive (+) → Terminal 6 (B)
Auxiliary battery negative (-) → Terminal 4 (E)Daytime running light illuminates Auxiliary battery positive (+) → Terminal 5 (B)
Auxiliary battery negative (-) → Terminal 4 (E)Clearance light illuminates Auxiliary battery positive (+) → Terminal 1 (LO)
Auxiliary battery negative (-) → Terminal 4 (E)Lo beam headlight illuminates Auxiliary battery positive (+) → Terminal 1 (LO)
Auxiliary battery negative (-) → Terminal 2 (HI)
Auxiliary battery negative (-) → Terminal 4 (E)Lo/Hi beam headlight illuminates
If the result is not as specified, replace the headlight assembly LH.
81110
2.INSPECT HEADLIGHT ASSEMBLY RH
a.
for LED 6 Pin Type:
i.
Illumination Inspection
1.
1.708,0.917 1.708,0.333
true
1.448,0.917 1.333,0.333
true
2,0.948 2.167,0.333
true
2.083,1.833 1.969,1.25
true
1.344,1.823 1.448,1.24
true
0.167,0.167 0.479,0.323
0.313,0.156
10
false
*a
1.646,0.167 1.958,0.365
0.313,0.198
10
false
LO
1.198,0.167 1.583,0.396
0.385,0.229
10
false
DRL
2.167,0.167 2.333,0.417
0.167,0.25
10
false
E
2,1.854 2.385,2.083
0.385,0.229
10
false
CLL
1.198,1.854 1.583,2.083
0.385,0.229
10
false
HI
| *a | Component without harness connected
(Headlight Assembly RH) |
Apply auxiliary battery voltage to the headlight assembly RH and check that the light illuminates.
- OK:
Measurement Condition Specified Condition Auxiliary battery positive (+) → Terminal 2 (LO)
Auxiliary battery negative (-) → Terminal 1 (E)Lo beam headlight illuminates Auxiliary battery positive (+) → Terminal 3 (DRL)
Auxiliary battery negative (-) → Terminal 1 (E)Daytime running light illuminates Auxiliary battery positive (+) → Terminal 4 (CLL)
Auxiliary battery negative (-) → Terminal 1 (E)Clearance light illuminates Auxiliary battery positive (+) → Terminal 2 (LO)
Auxiliary battery negative (-) → Terminal 6 (HI)
Auxiliary battery negative (-) → Terminal 1 (E)Lo/Hi beam headlight illuminates
If the result is not as specified, replace the headlight assembly RH.
b.
for LED 8 Pin Type:
i.
Illumination Inspection
1.
2.5,0.5 2.146,0.875
true
1.906,0.833 2.083,0.5
true
1.365,0.875 1.083,0.583
true
2.083,1.667 1.917,1.281
true
1.625,1.688 1.625,1.302
true
2.438,1.656 2.135,1.313
true
0.167,0.167 0.479,0.323
0.313,0.156
10
false
*a
2.458,1.667 2.802,1.865
0.344,0.198
10
false
B
2.521,0.365 2.896,0.573
0.375,0.208
10
false
LO
2.104,0.354 2.438,0.521
0.333,0.167
10
false
HI
0.969,0.385 1.313,0.583
0.344,0.198
10
false
E
1.583,1.667 1.927,1.865
0.344,0.198
10
false
B
2.073,1.667 2.417,1.865
0.344,0.198
10
false
B
| *a | Component without harness connected
(Headlight Assembly RH) |
Apply auxiliary battery voltage to the headlight assembly RH and check that the light illuminates.
- OK:
Measurement Condition Specified Condition Auxiliary battery positive (+) → Terminal 6 (B)
Auxiliary battery negative (-) → Terminal 4 (E)Daytime running light illuminates Auxiliary battery positive (+) → Terminal 5 (B)
Auxiliary battery negative (-) → Terminal 4 (E)Clearance light illuminates Auxiliary battery positive (+) → Terminal 1 (LO)
Auxiliary battery negative (-) → Terminal 4 (E)Lo beam headlight illuminates Auxiliary battery positive (+) → Terminal 1 (LO)
Auxiliary battery negative (-) → Terminal 2 (HI)
Auxiliary battery negative (-) → Terminal 4 (E)Lo/Hi beam headlight illuminates
If the result is not as specified, replace the headlight assembly RH.
