RM3660EC _59 Vehicle Exterior _080784 LIGHTING (EXT) _0393155 HEADLIGHT ASSEMBLY(for TFTM Made) A

LIGHTING (EXT)  HEADLIGHT ASSEMBLY(for TFTM Made)  DISASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1.REMOVE FRONT TURN SIGNAL LIGHT BULB (for Bulb Type Turn Signal Light)

a.

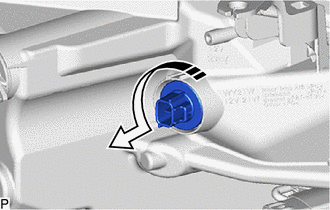

E512718C01
0,0 0,0 false
V113147

Remove in this Direction


Turn the front turn signal light socket with the front turn signal light bulb as shown in the illustration to remove them as a unit.


b.

Remove the front turn signal light bulb from the front turn signal light socket.


Hide 2.REMOVE FRONT TURN SIGNAL LIGHT SOCKET (for Bulb Type Turn Signal Light)
