LIGHTING (EXT)
_0393155
HEADLIGHT ASSEMBLY(for TFTM Made)
K

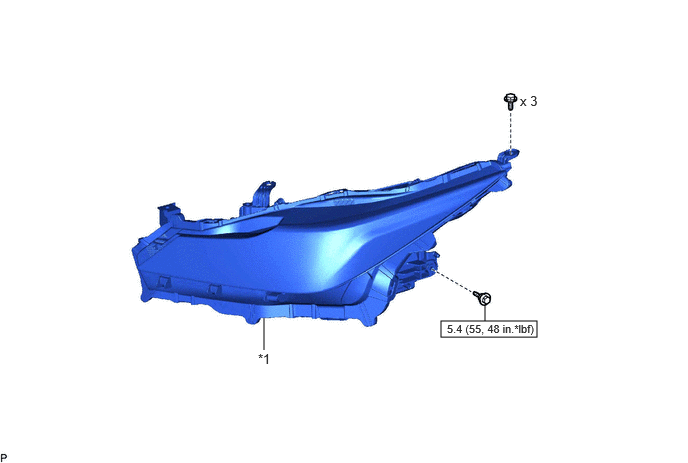

LIGHTING (EXT) HEADLIGHT ASSEMBLY(for TFTM Made) COMPONENTS
ILLUSTRATION
4.594,3.344 5.594,3.51
1,0.167
2.75,3.646 2.75,3.313
false
5.052,3.177 5.052,3.344
false
2.688,3.656 3,3.813
0.313,0.156
10
false
*1
5.417,0.969 5.875,1.167
0.458,0.198
10
false
x 3
4.656,3.354 5.656,3.521
1,0.167
8
false
5.4 (55, 48 in.*lbf)
| *1 | HEADLIGHT ASSEMBLY | - | - |
|
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
3.76,1.844 3.76,1.51
false
4.083,1.708 4.083,1.375
false
3.698,1.854 4.01,2.01
0.313,0.156
10
false
*1
4.01,1.719 4.323,1.875
0.313,0.156
10
false
*2
0.167,0.146 0.542,0.385
0.375,0.24
12
false

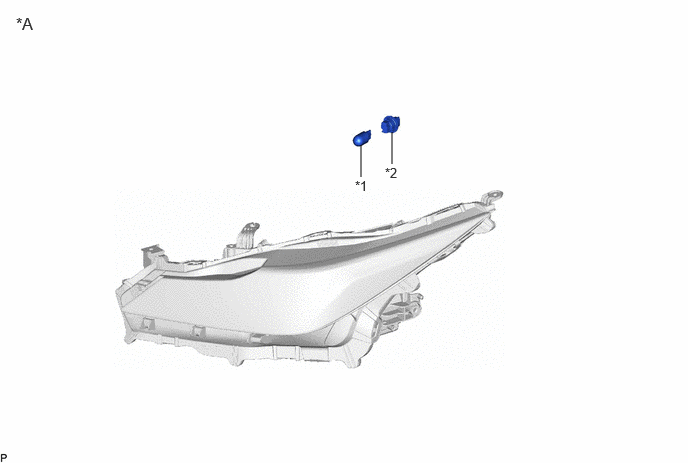

*A
| *A | for Bulb Type Turn Signal Light | - | - |
| *1 | FRONT TURN SIGNAL LIGHT BULB | *2 | FRONT TURN SIGNAL LIGHT SOCKET |
