SUPPLEMENTAL RESTRAINT SYSTEMS FRONT SEAT SIDE AIRBAG ASSEMBLY ON-VEHICLE INSPECTION
CAUTION / NOTICE / HINT

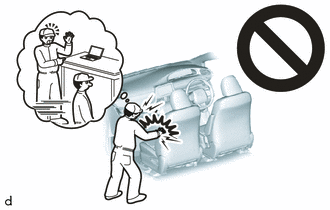

- CAUTION:
-
-
Be sure to correctly follow the removal and installation procedures for the front seat airbag assemblies.
PROCEDURE
73920A
1.INSPECT FRONT SEAT AIRBAG ASSEMBLY (for Vehicle not Involved in Collision)
Perform a diagnostic system check.
for NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>DTC CHECK / CLEAR202307,999999,_58,_080741,_0610731,RM100000002CH03,
Visually check for defects with the front seat airbag assemblies installed to the vehicle.
- HINT:
-
The defects are as follows:
- ·
Scratches, broken or frayed threads on the surface of the front seatback assembly around the front seat airbag assemblies
·Small cracks in the front seatback assembly around the front seat airbag assemblies
·Significant discoloration on the front seatback assembly around the front seat airbag assemblies
- OK:
No defects are found.
If any defects are found, replace the separate type front seatback pad or separate type front seatback cover with a new one.
73920A
2.INSPECT FRONT SEAT AIRBAG ASSEMBLY (for Vehicle Involved in Collision and Airbag not Deployed)
Perform a diagnostic system check.
for NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>DTC CHECK / CLEAR202307,999999,_58,_080741,_0610731,RM100000002CH03,
Visually check for defects with the front seat airbag assemblies removed from the vehicle.
- HINT:
-
The defects are as follows:
- ·
Scratches, broken or frayed threads on the surface of the base fabric of the front seat airbag assemblies
·Marks from being dropped
·Deformation of the installation surface of the front seat airbag assemblies
·Cracks or other damage to the wire harness or connector
- OK:
No defects are found.
If any defects are found, replace the front seat airbag assembly with a new one.
