THEFT DETERRENT / KEYLESS ENTRY  IMMOBILISER SYSTEM(w/o Smart Entry and Start System)  PARTS LOCATION

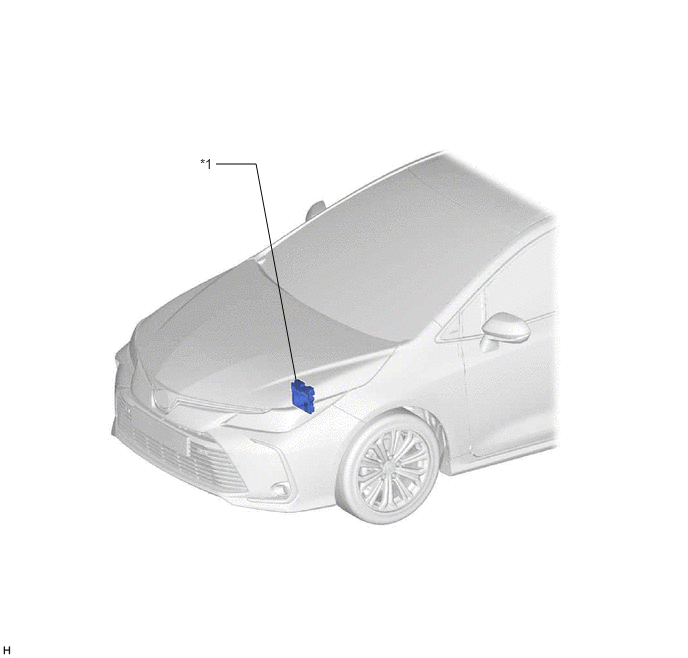

ILLUSTRATION

2.25,1.708 2.667,1.708 2.667,1.708 3.083,3.958 false 2.083,1.625 2.396,1.823 0.313,0.198 10 false *1

*1

ECM

-

-

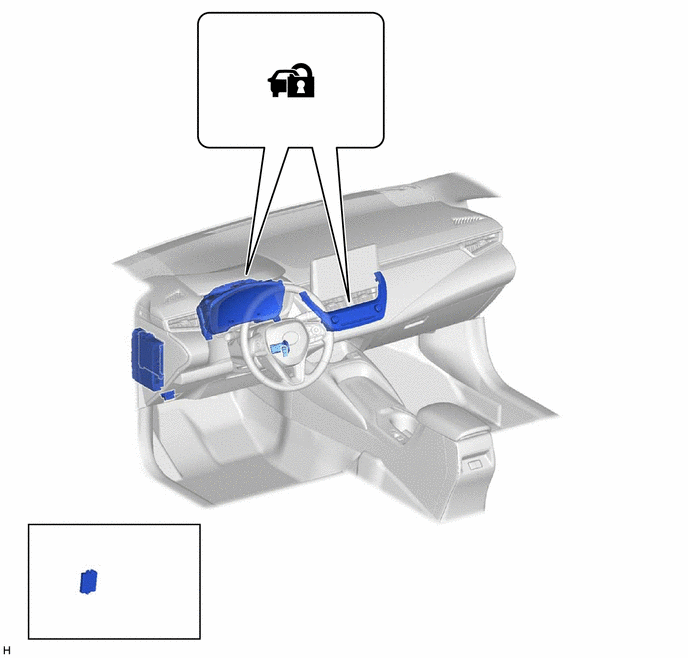

ILLUSTRATION

2.969,3.708 3.906,6.01 3.906,6.01 4.313,6.01 false 2.875,3.667 3.219,6.302 3.219,6.302 3.625,6.302 false 1.75,4.167 2.26,5.667 2.26,5.667 2.417,5.667 false 0.948,5.938 1.198,5.688 1.198,5.688 1.448,5.688 false 0.635,4.854 0.969,4.854 0.969,4.854 1.385,3.938 false 0.917,1.823 1.25,1.823 1.25,1.823 1.583,3.49 false 3.156,0.667 3.406,0.417 3.406,0.417 3.656,0.417 false 4.01,3.188 5.365,2.031 5.365,2.031 5.938,2.031 false 1.5,1.406 1.833,1.406 1.833,1.406 2.167,3.073 false 4.385,5.927 4.698,6.177 0.313,0.25 10 false *1 3.729,0.354 4.042,0.604 0.313,0.25 10 false *4 3.688,6.208 4.021,6.448 0.333,0.24 10 false *5 2.458,5.573 2.792,5.823 0.333,0.25 10 false *6 1.5,5.625 1.833,5.875 0.333,0.25 10 false *7 0.729,1.75 1.042,2 0.313,0.25 10 false *8 0.458,4.771 1.323,5.063 0.865,0.292 10 false *9 0.365,5.542 0.677,5.781 0.313,0.24 10 false *a 6.021,1.979 6.698,2.167 0.677,0.188 10 false *3 (*B) 1.042,1.323 1.583,1.583 0.542,0.26 10 false *2 (*A)

*A	w/ Security Indicator on Combination Meter Assembly	*B	w/ Security Indicator on Air Conditioning Control Assembly
*1	UNLOCK WARNING SWITCH ASSEMBLY	*2	COMBINATION METER ASSEMBLY
*3	AIR CONDITIONING CONTROL ASSEMBLY	*4	SECURITY INDICATOR LIGHT
*5	TRANSPONDER KEY COIL	*6	DLC3
*7	TRANSPONDER KEY ECU ASSEMBLY	*8	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*9	POWER DISTRIBUTION BOX ASSEMBLY - ECU-B NO. 1 FUSE - ECU-IGP NO. 3 FUSE	-	-
*a	Refer to Service Bulletin for installation position of the part.	-	-
