METER / GAUGE SYSTEM(except 12.3 Inch Display)
U

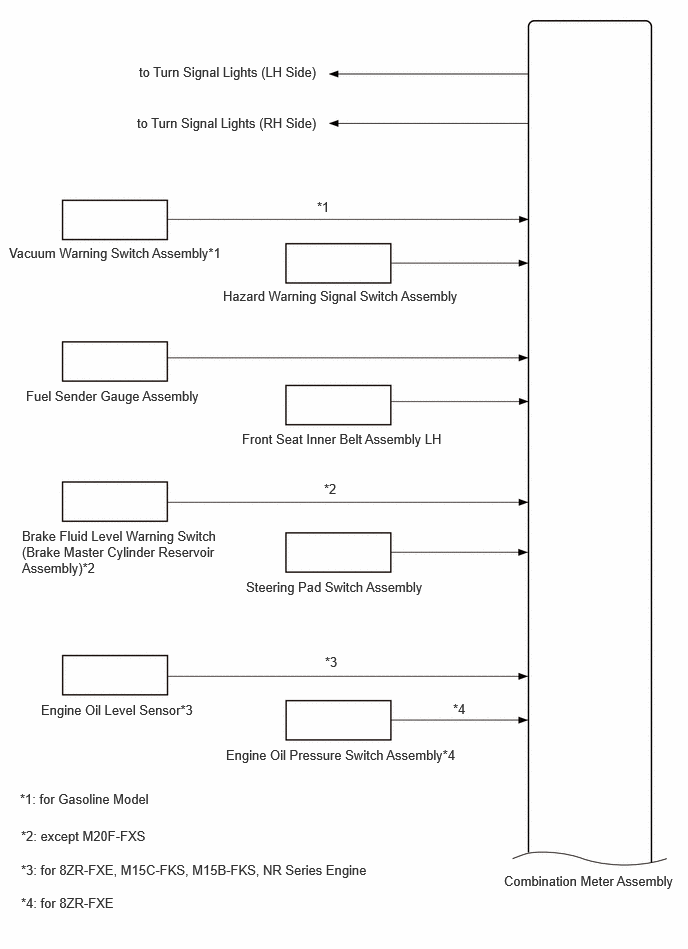

METER / GAUGE / DISPLAY METER / GAUGE SYSTEM(except 12.3 Inch Display) SYSTEM DIAGRAM
- HINT:
-
Refer to System Diagram of CAN Communication System.
-
for HV Model: Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HV Model)>SYSTEM DIAGRAM202307,999999,_57,_080743,_0392424,RM100000002CLU6,
-
for Gasoline Model (NR Series): Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model (NR Series))>SYSTEM DIAGRAM202304,202403,_57,_080743,_0598517,RM100000002B6UU,202403,999999,_57,_080743,_0598517,RM100000002JOV8,
-
for Gasoline Model (except NR Series): Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model (except NR Series))>SYSTEM DIAGRAM202304,999999,_57,_080743,_0598531,RM100000002BFV7,
1.448,0.667 3.74,0.865
2.292,0.198
10
false
to Turn Signal Lights (LH Side)
2.323,3 5.167,3.313
2.844,0.313
10
false
Hazard Warning Signal Switch Assembly
0.094,2.552 2.51,2.854
2.417,0.302
10
false
Vacuum Warning Switch Assembly*1
0.229,5.5 2.292,6.146
2.063,0.646
10
false
Brake Fluid Level Warning Switch (Brake Master Cylinder Reservoir Assembly)*2
0.427,7.313 2.26,7.51
1.833,0.198
10
false
Engine Oil Level Sensor*3
0.271,4.042 2.563,4.24
2.292,0.198
10
false
Fuel Sender Gauge Assembly
1.427,1.198 3.719,1.396
2.292,0.198
10
false
to Turn Signal Lights (RH Side)
2.521,4.49 4.938,4.75
2.417,0.26
10
false
Front Seat Inner Belt Assembly LH
5.25,9.094 7.083,9.281
1.833,0.188
10
false
Combination Meter Assembly
2.354,7.781 4.885,8.229
2.531,0.448
10
false
Engine Oil Pressure Switch Assembly*4
3.302,2.073 3.615,2.271
0.313,0.198
10
false
*1
0.208,8.24 2.885,8.521
2.677,0.281
10
false
*1: for Gasoline Model
0.219,9.323 2.688,9.813
2.469,0.49
10
false
*4: for 8ZR-FXE
0.219,8.979 4.073,9.281
3.854,0.302
10
false
*3: for 8ZR-FXE, M15C-FKS, M15B-FKS, NR Series Engine
3.385,6.813 3.698,7.01
0.313,0.198
10
false
*3
4.719,7.302 5.031,7.5
0.313,0.198
10
false
*4
2.563,6.031 4.99,6.344
2.427,0.313
10
false
Steering Pad Switch Assembly
3.375,5.01 3.688,5.208
0.313,0.198
10
false
*2
0.219,8.625 4.073,8.927
3.854,0.302
10
false
*2: except M20F-FXS
3.125,6.438 5.573,6.635
2.448,0.198
10
false
*1: w/ Smart Key System
5.208,6.813 7.156,7.24
1.948,0.427
10
false
Combination Meter Assembly
2.375,0.677 2.688,0.875
0.313,0.198
10
false
*1
2.396,1.917 2.708,2.115
0.313,0.198
10
false
*2
2.594,3.75 3.229,4.26
0.635,0.51
10
false
ECM
0.083,1.146 3.521,1.458
3.438,0.313
10
false
Certification ECU (Smart Key ECU Assembly)*1
0.083,2.406 6.5,2.604
6.417,0.198
10
false
Skid Control ECU (Brake Actuator Assembly)*2
3.125,6.667 5.573,6.865
2.448,0.198
10
false
*2: w/o Smart Key System
4.333,2.948 4.646,3.146
0.313,0.198
10
false
*3
0.073,5.573 5.427,5.771
5.354,0.198
10
false
Radio and Display Receiver Assembly*5
3.875,3.323 4.188,3.521
0.313,0.198
10
false
*4
2.385,5.969 6.51,6.167
4.125,0.198
10
false
to CAN Communication System
0.823,7.427 4.49,7.625
3.667,0.198
10
false
: CAN Communication Line
0.823,7.01 5.406,7.208
4.583,0.198
10
false
: Local Bus Communication Line
3.125,6.896 5.573,7.094
2.448,0.198
10
false
*3: for HV Model
3.125,7.125 5.573,7.323
2.448,0.198
10
false
*4: for Gasoline Model
0.073,5.792 5.427,5.99
5.354,0.198
10
false
Navigation Receiver Assembly*6
3.125,7.333 5.573,7.531
2.448,0.198
10
false
*5: for Radio and Display Type
3.115,7.542 5.563,7.74
2.448,0.198
10
false
*6: for Navigation Receiver Type
