FRONT DRIVE SHAFT ASSEMBLY(for TFTM Made)
G
DRIVE SHAFT / PROPELLER SHAFT FRONT DRIVE SHAFT ASSEMBLY(for TFTM Made) INSPECTION
PROCEDURE
1.INSPECT FRONT DRIVE SHAFT ASSEMBLY
a.
Check that there is no excessive play in the radial direction of the outboard joint.
b.
Check that the inboard joint slides smoothly in the thrust direction.
c.
Check that there is no excessive play in the radial direction of the inboard joint.
d.
Check the boots for damage.
e.
2.542,2.49 2.729,2.49
false
1.167,2.229 1.354,2.229
false
0.073,0.094 0.448,0.333
0.375,0.24
10
false
*A
0.094,1.365 0.469,1.604
0.375,0.24
10
false
*B
1.427,2.135 1.74,2.333
0.313,0.198
10
false
*1
1.563,0.927 1.719,1.125
0.156,0.198
10
false
A
1.521,4.281 1.833,4.542
0.313,0.26
10
false
A
0.469,3.823 0.625,4.021
0.156,0.198
10
false
B
2.823,2.406 3.156,2.594
0.333,0.188
10
true
*1
| *A | for NR Series |
| *B | for 8ZR-FXE
for M15B-FKS |
| *1 | Front Drive Shaft Dust Cover |

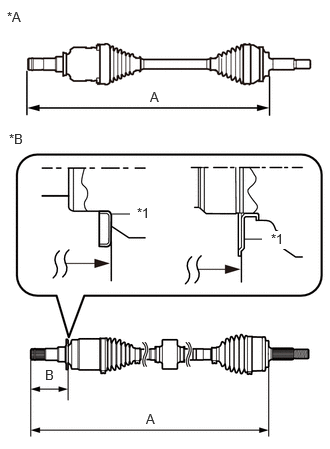

for 8ZR-FXE, M15B-FKS, NR Series Engine:
i. Check whether the drive shaft dimension (A) and (B) are within specification.
- NOTICE:
-
Keep the drive shaft assembly level during inspection.
- Dimension (A) (for 8ZR-FXE):
for LH Side 581.2 mm (1.91 ft.) for RH Side 880.2 mm (2.89 ft.)
- Dimension (A) (for NR Series):
for LH Side 600.9 mm (1.97 ft.) for RH Side 855.9 mm (2.81 ft.)
- Dimension (A) (for M15B-FKS):
for LH Side 610.9 mm (2.00 ft.) for RH Side 855.9 mm (2.81 ft.)
- Dimension (B) (for 8ZR-FXE):
for LH Side 88.2 mm (3.47 in.) for RH Side 89.0 to 90.1 mm (3.51 to 3.54 in.)
- Dimension (B) (for M15B-FKS):
for LH Side 88.4 mm (3.48 in.) for RH Side 88.4 mm (3.48 in.)
f.

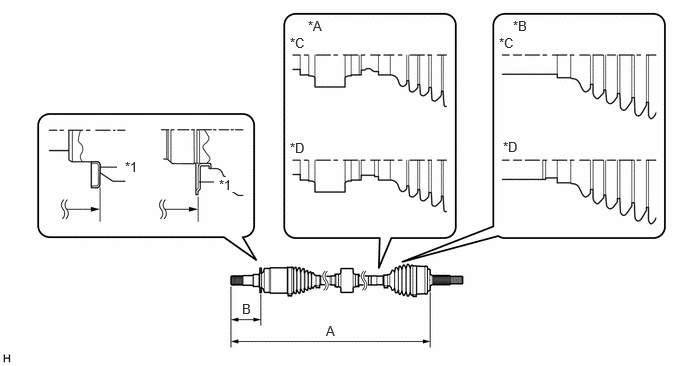

for M20A-FKS, M20E-FKS, M20G-FXS:
i. Check whether the drive shaft dimension (A) and (B) are within specification.
1.042,1.74 1.219,1.74
false
2.073,1.896 2.229,1.896
false
3.396,3.365 3.552,3.563
0.156,0.198
10
false
A
2.521,3.135 2.677,3.333
0.156,0.198
10
false
B
3.208,0.188 3.583,0.427
0.375,0.24
10
false
*A
5.344,0.188 5.719,0.427
0.375,0.24
10
false
*B
1.302,1.656 1.521,1.875
0.219,0.219
10
false
*1
2.281,1.844 2.49,2
0.208,0.156
10
true
*1
3.021,0.365 3.396,0.604
0.375,0.24
10
false
*C
5.198,0.365 5.573,0.604
0.375,0.24
10
false
*C
3.021,1.458 3.396,1.698
0.375,0.24
10
false
*D
5.24,1.448 5.615,1.688
0.375,0.24
10
false
*D
| *A | for LH Side | *B | for RH Side |
| *C | for Drive Shaft Type A | *D | for Drive Shaft Type B |
| *1 | Front Drive Shaft Dust Cover | - | - |
- NOTICE:
-
Keep the drive shaft assembly level during inspection.
- Dimension (A) (for Drive Shaft Type A):
for LH Side 575.2 mm (1.89 ft.) for RH Side 877.2 mm (2.88 ft.)
- Dimension (A) (for Drive Shaft Type B):
for LH Side 579.2 mm (1.90 ft.) for RH Side 883.2 mm (2.90 ft.)
- Dimension (B):
for LH Side 87.9 to 88.5 mm (3.47 to 3.48 in.) for RH Side 97.4 to 98.0 mm (3.84 to 3.85 in.)
