POWER OUTLETS (INT)  WIRELESS CHARGER ASSEMBLY  INSTALLATION

861C0 1.INSTALL MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

a.

0,0 0,0 false

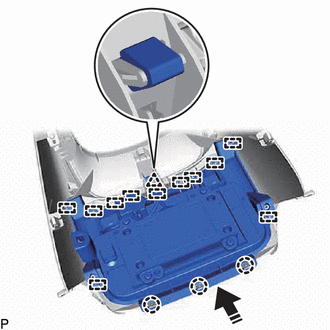

Install in this Direction

Engage the 11 guides, 3 claws and clip as shown in the illustration.

b.

Install the mobile wireless charger cradle assembly with the 4 screws.

84751 2.INSTALL SEAT HEATER SWITCH (w/ Seat Heater System)

58831A 3.INSTALL FRONT CONSOLE UPPER PANEL GARNISH

55434F 4.INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

55606 5.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
