RM3660EC _58 Vehicle Interior _080766 POWER OUTLETS (INT) _0611797 WIRELESS CHARGER ASSEMBLY A

POWER OUTLETS (INT) WIRELESS CHARGER ASSEMBLY REMOVAL

PROCEDURE

Hide Display 55606 1.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Hide Display 55434F 2.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Hide Display 58831A 3.REMOVE FRONT CONSOLE UPPER PANEL GARNISH

Hide Display 84751 4.REMOVE SEAT HEATER SWITCH (w/ Seat Heater System)

Hide Display 861C0 5.REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

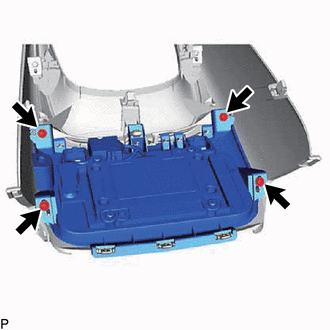

Remove the 4 screws.

0,0 0,0 false

Remove in this Direction

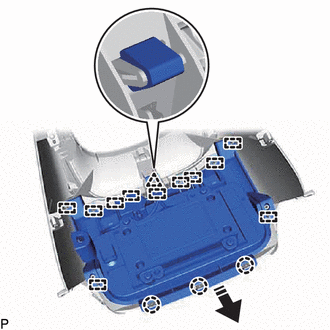

Disengage the 11 guides, 3 claws and clip as shown in the illustration to remove the mobile wireless charger cradle assembly.
