RM3660EC _59 Vehicle Exterior _080794 MIRROR (EXT) _0393000 OUTER REAR VIEW MIRROR G

MIRROR (EXT) OUTER REAR VIEW MIRROR INSPECTION

PROCEDURE

Hide Display 87910 1.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH (w/o Power Retract Mirror)

Check the operation of the mirror surface.

NOTICE:: If the mirror surface is fully turned to the right, left, upward or downward position, the motor slips and produces a clicking noise. This is not a malfunction.

Disconnect the outer rear view mirror assembly RH connector.

ii.

2.021,2.344 2.021,1.917 2.021,1.917 2.167,1.917 true 1.948,2.375 1.948,1.604 1.948,1.604 2.188,1.604 true 1.833,2.406 1.833,1.833 1.833,1.833 1.688,1.833 true 1.271,2.406 1.719,2.74 0.448,0.333 10 false *a 1.427,1.76 1.938,2.156 0.51,0.396 10 false MV 2.25,1.854 2.885,2.167 0.635,0.313 10 false MH 2.25,1.521 2.74,1.823 0.49,0.302 10 false M+

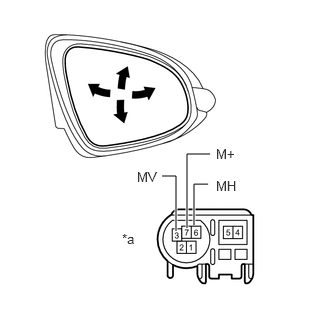

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply auxiliary battery voltage and check the operation of the mirror surface.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → Terminal 3 (MV) Auxiliary battery negative (-) → Terminal 7 (M+)	Turns upward
Auxiliary battery positive (+) → Terminal 7 (M+) Auxiliary battery negative (-) → Terminal 3 (MV)	Turns downward
Auxiliary battery positive (+) → Terminal 6 (MH) Auxiliary battery negative (-) → Terminal 7 (M+)	Turns left
Auxiliary battery positive (+) → Terminal 7 (M+) Auxiliary battery negative (-) → Terminal 6 (MH)	Turns right

If the result is not as specified, replace the outer rear view mirror assembly RH.

Check the operation of the mirror heater. (w/ Mirror Heater)

Disconnect the outer rear view mirror assembly RH connector.

ii.

1.719,3.115 1.885,3.115 1.885,3.115 1.885,2.615 true 2.479,2.365 2.479,1.979 2.479,1.979 2.667,1.979 true 1.25,2.417 1.417,2.583 0.167,0.167 10 false *a 1.573,3.031 1.99,3.198 0.417,0.167 10 false + 2.708,1.896 3.177,2.146 0.469,0.25 10 false E

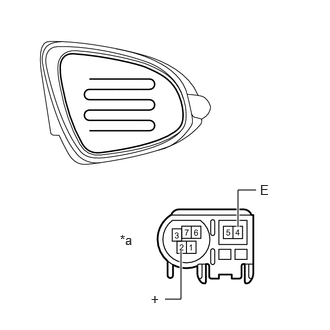

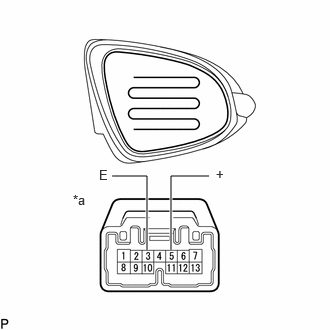

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
2 (+) - 4 (E)	25°C (77°F)	10.5 to 12.8 Ω

If the result is not as specified, replace the outer rear view mirror assembly RH.

iii.

Connect a cable from the positive (+) auxiliary battery terminal to terminal 2 (+) and the negative (-) auxiliary battery terminal to terminal 4 (E), then check that the mirror becomes warm.

HINT:: It takes a short time for the mirror to become warm.

OK:: Mirror becomes warm.

If the result is not as specified, replace the outer rear view mirror assembly RH.

Hide Display 87940 2.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH (w/o Power Retract Mirror)

Check the operation of the mirror surface.

NOTICE:: If the mirror surface is fully turned to the right, left, upward or downward position, the motor slips and produces a clicking noise. This is not a malfunction.

Disconnect the outer rear view mirror assembly LH connector.

ii.

0.958,2.354 0.958,1.969 0.958,1.969 1.146,1.969 true 0.865,2.365 0.865,1.573 0.865,1.573 1.156,1.573 true 0.76,2.385 0.76,1.885 0.76,1.885 0.531,1.885 true 0.219,2.365 0.823,2.74 0.604,0.375 10 false *a 0.271,1.823 0.75,2.115 0.479,0.292 10 false MV 1.219,1.49 1.708,1.771 0.49,0.281 10 false M+ 1.24,1.885 1.865,2.188 0.625,0.302 10 false MH

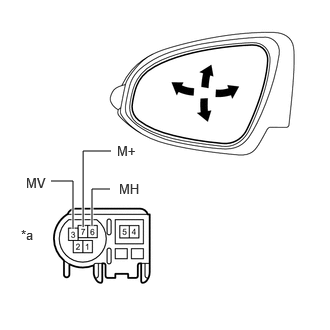

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply auxiliary battery voltage and check the operation of the mirror surface.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → Terminal 3 (MV) Auxiliary battery negative (-) → Terminal 7 (M+)	Turns upward
Auxiliary battery positive (+) → Terminal 7 (M+) Auxiliary battery negative (-) → Terminal 3 (MV)	Turns downward
Auxiliary battery positive (+) → Terminal 6 (MH) Auxiliary battery negative (-) → Terminal 7 (M+)	Turns left
Auxiliary battery positive (+) → Terminal 7 (M+) Auxiliary battery negative (-) → Terminal 6 (MH)	Turns right

If the result is not as specified, replace the outer rear view mirror assembly LH.

Check the operation of the mirror heater. (w/ Mirror Heater)

Disconnect the outer rear view mirror assembly LH connector.

ii.

0.646,3.115 0.813,3.115 0.813,3.115 0.813,2.594 true 1.552,1.906 1.385,1.906 1.385,1.906 1.385,2.365 true 0.198,2.396 0.365,2.563 0.167,0.167 10 false *a 0.521,3.031 0.948,3.26 0.427,0.229 10 false + 1.583,1.833 2,2.01 0.417,0.177 10 false E

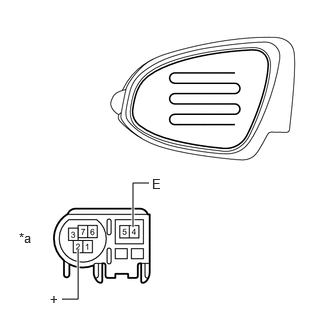

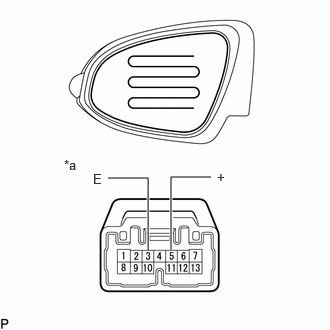

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
2 (+) - 4 (E)	25°C (77°F)	10.5 to 12.8 Ω

If the result is not as specified, replace the outer rear view mirror assembly LH.

iii.

Connect a cable from the positive (+) auxiliary battery terminal to terminal 2 (+) and the negative (-) auxiliary battery terminal to terminal 4 (E), then check that the mirror becomes warm.

HINT:: It takes a short time for the mirror to become warm.

OK:: Mirror becomes warm.

If the result is not as specified, replace the outer rear view mirror assembly LH.

Hide Display 87910 3.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH (w/ Power Retract Mirror)

Check the operation of the mirror surface.

NOTICE:: If the mirror surface is fully turned to the right, left, upward or downward position, the motor slips and produces a clicking noise. This is not a malfunction.

Disconnect the outer rear view mirror assembly RH connector.

ii.

2.49,2.531 2.49,1.948 2.49,1.948 2.292,1.948 true 2.583,2.531 2.583,1.531 2.583,1.531 2.781,1.531 true 2.698,2.531 2.698,1.948 2.698,1.948 2.896,1.948 true 2.052,1.865 2.313,2.042 0.26,0.177 10 false MH 2.813,1.458 3.094,1.656 0.281,0.198 10 false M+ 2.927,1.875 3.208,2.156 0.281,0.281 10 false MV 1.49,2.135 1.656,2.281 0.167,0.146 10 false *a

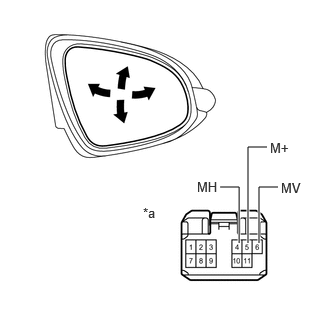

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply auxiliary battery voltage and check the operation of the mirror surface.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → Terminal 6 (MV) Auxiliary battery negative (-) → Terminal 5 (M+)	Turns upward
Auxiliary battery positive (+) → Terminal 5 (M+) Auxiliary battery negative (-) → Terminal 6 (MV)	Turns downward
Auxiliary battery positive (+) → Terminal 4 (MH) Auxiliary battery negative (-) → Terminal 5 (M+)	Turns left
Auxiliary battery positive (+) → Terminal 5 (M+) Auxiliary battery negative (-) → Terminal 4 (MH)	Turns right

If the result is not as specified, replace the outer rear view mirror assembly RH.

Check the operation of the mirror heater.

Disconnect the outer rear view mirror assembly RH connector.

ii.

2.448,2.781 2.448,3.188 2.448,3.188 2.219,3.188 true 2.021,2.5 2.021,1.875 2.021,1.875 2.281,1.875 true 2.333,1.802 2.75,2 0.417,0.198 10 false + 2.115,3.104 2.521,3.281 0.406,0.177 10 false - 1.417,2.104 1.677,2.313 0.26,0.208 10 false *a

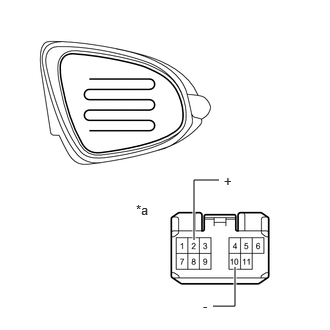

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
2 (+) - 10 (-)	25°C (77°F)	12 to 18 Ω

If the result is not as specified, replace the outer rear view mirror assembly RH.

iii.

Connect a cable from the positive (+) auxiliary battery terminal to terminal 2 (+) and the negative (-) auxiliary battery terminal to terminal 10 (-), then check that the mirror becomes warm.

HINT:: It takes a short time for the mirror to become warm.

OK:: Mirror becomes warm.

If the result is not as specified, replace the outer rear view mirror assembly RH.

Check the operation of the retractable mirror.

NOTICE:: ·

Disconnect and reconnect the auxiliary battery between each mirror position check.

·

The mirror position cannot be changed manually when the auxiliary battery is connected. To change the mirror position manually, the auxiliary battery must be disconnected first.

·

If the motor is kept energized, even after each mirror position check, it may lead to a motor malfunction. Make sure to disconnect the auxiliary battery immediately after performing each mirror position check.

Disconnect the outer rear view mirror assembly RH connector.

ii.

0.813,2.792 0.813,3.146 0.813,3.146 0.615,3.146 true 1.042,2.021 0.813,2.021 0.813,2.021 0.823,2.573 true 2.656,0.167 2.885,0.406 0.229,0.24 10 false *a 2.01,2.25 2.271,2.458 0.26,0.208 10 false *e 2.396,2.031 2.594,2.177 0.198,0.146 10 false *d 2.823,1.802 3.031,2.021 0.208,0.219 10 false *c 2.958,0.938 3.208,1.167 0.25,0.229 10 false *b 0.396,3.063 0.708,3.271 0.313,0.208 10 false MF 1.094,1.938 1.469,2.146 0.375,0.208 10 false MR 0.229,2.146 0.542,2.406 0.313,0.26 10 false *f

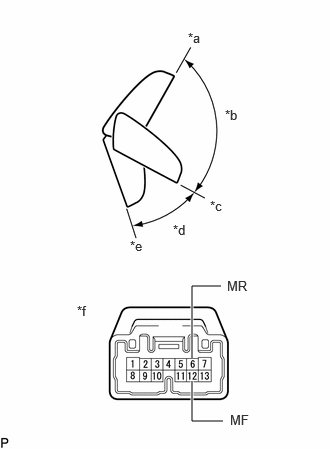

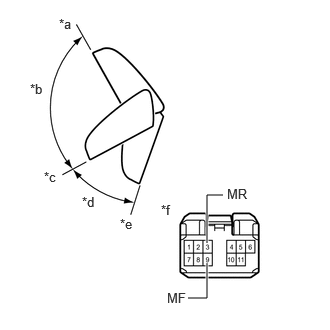

*a	(A) Forward Position
*b	(B)
*c	(C) Driving position
*d	(D)
*e	(E) Retracted Position
*f	Component without harness connected (Outer Rear View Mirror Assembly RH)

For each position: Disconnect the auxiliary battery, set the mirror position by hand, connect the auxiliary battery, and check the retractable mirror's movement.

OK:

Auxiliary Battery Connection	Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 3 (MR) Auxiliary battery negative (-) → Terminal 9 (MF)	Forward position (A)	Moves from (A) to (E)
Auxiliary battery positive (+) → Terminal 9 (MF) Auxiliary battery negative (-) → Terminal 3 (MR)	Forward position (A)	Does not move
Auxiliary battery positive (+) → Terminal 3 (MR) Auxiliary battery negative (-) → Terminal 9 (MF)	Position between forward position (A) and driving position (C)	Moves from (B) to (E)
Auxiliary battery positive (+) → Terminal 9 (MF) Auxiliary battery negative (-) → Terminal 3 (MR)	Position between forward position (A) and driving position (C)	Moves from (B) to (A)
Auxiliary battery positive (+) → Terminal 3 (MR) Auxiliary battery negative (-) → Terminal 9 (MF)	Driving position (C)	Moves from (C) to (E)
Auxiliary battery positive (+) → Terminal 9 (MF) Auxiliary battery negative (-) → Terminal 3 (MR)	Driving position (C)	Does not move
Auxiliary battery positive (+) → Terminal 3 (MR) Auxiliary battery negative (-) → Terminal 9 (MF)	Position between driving position (C) and retracted position (E)	Moves from (D) to (E)
Auxiliary battery positive (+) → Terminal 9 (MF) Auxiliary battery negative (-) → Terminal 3 (MR)	Position between driving position (C) and retracted position (E)	Moves from (D) to (C)
Auxiliary battery positive (+) → Terminal 3 (MR) Auxiliary battery negative (-) → Terminal 9 (MF)	Retracted position (E)	Does not move
Auxiliary battery positive (+) → Terminal 9 (MF) Auxiliary battery negative (-) → Terminal 3 (MR)	Retracted position (E)	Moves from (E) to (C)

If the result is not as specified, replace the outer rear view mirror assembly RH.

Hide Display 87940 4.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH (w/ Power Retract Mirror)

Check the operation of the mirror surface.

NOTICE:: If the mirror surface is fully turned to the right, left, upward or downward position, the motor slips and produces a clicking noise. This is not a malfunction.

Disconnect the outer rear view mirror assembly LH connector.

ii.

1.49,2.521 1.49,1.844 1.49,1.844 1.75,1.844 true 1.385,2.521 1.385,1.615 1.385,1.615 1.167,1.615 true 1.281,2.521 1.281,1.896 1.281,1.896 1.063,1.896 true 1.802,1.76 2.125,1.969 0.323,0.208 10 false MV 0.948,1.542 1.229,1.729 0.281,0.188 10 false M+ 0.833,1.823 1.135,2.031 0.302,0.208 10 false MH 0.313,2.135 0.563,2.323 0.25,0.188 10 false *a

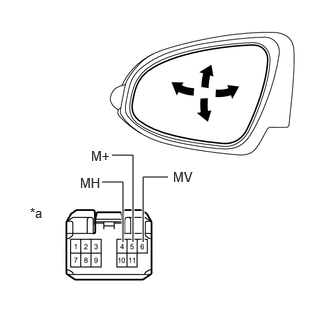

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply auxiliary battery voltage and check the operation of the mirror surface.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → Terminal 6 (MV) Auxiliary battery negative (-) → Terminal 5 (M+)	Turns upward
Auxiliary battery positive (+) → Terminal 5 (M+) Auxiliary battery negative (-) → Terminal 6 (MV)	Turns downward
Auxiliary battery positive (+) → Terminal 5 (M+) Auxiliary battery negative (-) → Terminal 4 (MH)	Turns right
Auxiliary battery positive (+) → Terminal 4 (MH) Auxiliary battery negative (-) → Terminal 5 (M+)	Turns left

If the result is not as specified, replace the outer rear view mirror assembly LH.

Check the operation of the mirror heater.

Disconnect the outer rear view mirror assembly LH connector.

ii.

0.854,2.563 0.854,1.969 0.854,1.969 1.094,1.969 true 1.292,2.833 1.292,3.219 1.292,3.219 1.531,3.219 true 1.583,3.135 2.021,3.323 0.438,0.188 10 false - 1.177,1.896 1.406,2.104 0.229,0.208 10 false + 0.292,2.188 0.583,2.396 0.292,0.208 10 false *a

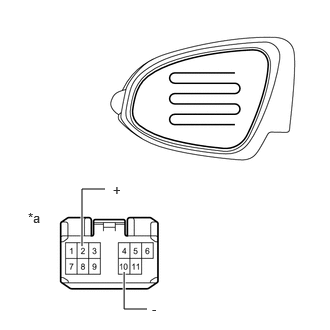

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
2 (+) - 10 (-)	25°C (77°F)	12 to 18 Ω

If the result is not as specified, replace the outer rear view mirror assembly LH.

iii.

Connect a cable from the positive (+) auxiliary battery terminal to terminal 2 (+) and the negative (-) auxiliary battery terminal to terminal 10 (-), then check that the mirror becomes warm.

HINT:: It takes a short time for the mirror to become warm.

OK:: Mirror becomes warm.

If the result is not as specified, replace the outer rear view mirror assembly LH.

Check the operation of the retractable mirror.

NOTICE:: ·

Disconnect and reconnect the auxiliary battery between each mirror position check.

·

The mirror position cannot be changed manually when the auxiliary battery is connected. To change the mirror position manually, the auxiliary battery must be disconnected first.

·

If the motor is kept energized, even after each mirror position check, it may lead to a motor malfunction. Make sure to disconnect the auxiliary battery immediately after performing each mirror position check.

Disconnect the outer rear view mirror assembly LH connector.

ii.

2.156,2.74 2.156,3.104 2.156,3.104 1.958,3.104 true 2.156,2.531 2.156,2.031 2.156,2.031 2.323,2.031 true 0.615,0.167 0.792,0.323 0.177,0.156 10 false *a 0.313,0.844 0.49,1 0.177,0.156 10 false *b 0.458,1.76 0.635,1.917 0.177,0.156 10 false *c 0.854,2.021 1.031,2.177 0.177,0.156 10 false *d 1.25,2.25 1.427,2.406 0.177,0.156 10 false *e 2.365,1.938 2.677,2.188 0.313,0.25 10 false MR 1.74,3.021 2.021,3.25 0.281,0.229 10 false MF 1.677,2.104 1.948,2.354 0.271,0.25 10 false *f

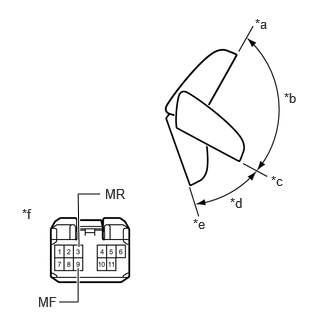

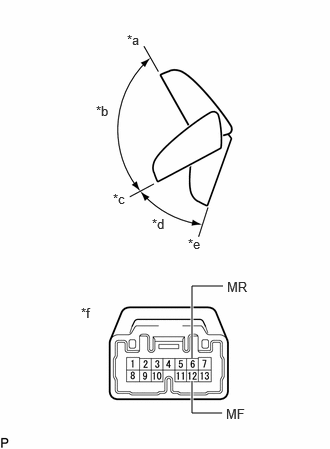

*a	(A) Forward position
*b	(B)
*c	(C) Driving position
*d	(D)
*e	(E) Retracted position
*f	Component without harness connected (Outer Rear View Mirror Assembly LH)

For each position: Disconnect the auxiliary battery, set the mirror position by hand, connect the auxiliary battery, and check the retractable mirror's movement.

OK:

Auxiliary Battery Connection	Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 3 (MR) Auxiliary battery negative (-) → Terminal 9 (MF)	Forward position (A)	Moves from (A) to (E)
Auxiliary battery positive (+) → Terminal 9 (MF) Auxiliary battery negative (-) → Terminal 3 (MR)	Forward position (A)	Does not move
Auxiliary battery positive (+) → Terminal 3 (MR) Auxiliary battery negative (-) → Terminal 9 (MF)	Position between forward position (A) and driving position (C)	Moves from (B) to (E)
Auxiliary battery positive (+) → Terminal 9 (MF) Auxiliary battery negative (-) → Terminal 3 (MR)	Position between forward position (A) and driving position (C)	Moves from (B) to (A)
Auxiliary battery positive (+) → Terminal 3 (MR) Auxiliary battery negative (-) → Terminal 9 (MF)	Driving position (C)	Moves from (C) to (E)
Auxiliary battery positive (+) → Terminal 9 (MF) Auxiliary battery negative (-) → Terminal 3 (MR)	Driving position (C)	Does not move
Auxiliary battery positive (+) → Terminal 3 (MR) Auxiliary battery negative (-) → Terminal 9 (MF)	Position between driving position (C) and retracted position (E)	Moves from (D) to (E)
Auxiliary battery positive (+) → Terminal 9 (MF) Auxiliary battery negative (-) → Terminal 3 (MR)	Position between driving position (C) and retracted position (E)	Moves from (D) to (C)
Auxiliary battery positive (+) → Terminal 3 (MR) Auxiliary battery negative (-) → Terminal 9 (MF)	Retracted position (E)	Does not move
Auxiliary battery positive (+) → Terminal 9 (MF) Auxiliary battery negative (-) → Terminal 3 (MR)	Retracted position (E)	Moves from (E) to (C)

If the result is not as specified, replace the outer rear view mirror assembly LH.

Hide Display 87910 5.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH (w/ Automatic Retractable Mirror)

Check the operation of the mirror surface.

NOTICE:: If the mirror surface is fully turned to the right, left, upward or downward position, the motor slips and produces a clicking noise. This is not a malfunction.

Disconnect the outer rear view mirror assembly RH connector.

ii.

1.677,1.927 1.417,1.927 1.417,1.927 1.417,2.604 true 1.104,3.271 1.406,3.271 1.406,3.271 1.406,2.833 true 1.833,3.271 1.531,3.271 1.531,3.271 1.531,2.833 true 1.719,1.844 2.031,2.042 0.313,0.198 10 false MV 0.625,1.99 0.938,2.188 0.313,0.198 10 false *a 0.854,3.177 1.167,3.375 0.313,0.198 10 false MH 1.865,3.177 2.177,3.375 0.313,0.198 10 false M+

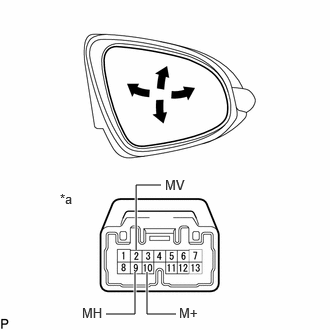

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply auxiliary battery voltage and check the operation of the mirror surface.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → Terminal 2 (MV) Auxiliary battery negative (-) → Terminal 10 (M+)	Turns upward
Auxiliary battery positive (+) → Terminal 10 (M+) Auxiliary battery negative (-) → Terminal 2 (MV)	Turns downward
Auxiliary battery positive (+) → Terminal 9 (MH) Auxiliary battery negative (-) → Terminal 10 (M+)	Turns left
Auxiliary battery positive (+) → Terminal 10 (M+) Auxiliary battery negative (-) → Terminal 9 (MH)	Turns right

If the result is not as specified, replace the outer rear view mirror assembly RH.

Check the operation of the mirror heater.

Disconnect the outer rear view mirror assembly RH connector.

ii.

1.781,2.604 1.781,1.833 1.781,1.833 2.177,1.833 true 1.531,2.604 1.531,1.833 1.531,1.833 1.167,1.833 true 0.76,2 1.073,2.198 0.313,0.198 10 false *a 2.25,1.729 2.74,1.99 0.49,0.26 10 false + 1.031,1.74 1.365,1.958 0.333,0.219 10 false E

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
5 (+) - 3 (E)	25°C (77°F)	12 to 18 Ω

If the result is not as specified, replace the outer rear view mirror assembly RH.

iii.

Connect a cable from the positive (+) auxiliary battery terminal to terminal 5 (+) and the negative (-) auxiliary battery terminal to terminal 3 (E), then check that the mirror becomes warm.

HINT:: It takes a short time for the mirror to become warm.

OK:: Mirror becomes warm.

If the result is not as specified, replace the outer rear view mirror assembly RH.

Check the operation of the retractable mirror.

NOTICE:: ·

Disconnect and reconnect the auxiliary battery between each mirror position check.

·

The mirror position cannot be changed manually when the auxiliary battery is connected. To change the mirror position manually, the auxiliary battery must be disconnected first.

·

If the motor is kept energized, even after each mirror position check, it may lead to a motor malfunction. Make sure to disconnect the auxiliary battery immediately after performing each mirror position check.

Disconnect the outer rear view mirror assembly RH connector.

ii.

2,3.729 2,2.979 2,2.979 2.302,2.979 true 2,3.969 2,4.385 2,4.385 2.323,4.385 true 1.958,0.313 2.271,0.469 0.313,0.156 10 false *a 2.344,1.115 2.656,1.271 0.313,0.156 10 false *b 2.188,2.063 2.5,2.219 0.313,0.156 10 false *c 1.802,2.313 2.115,2.469 0.313,0.156 10 false *d 1.354,2.479 1.667,2.635 0.313,0.156 10 false *e 0.802,3.156 1.115,3.313 0.313,0.156 10 false *f 2.365,2.896 2.677,3.052 0.313,0.156 10 false MR 2.396,4.292 2.708,4.448 0.313,0.156 10 false MF

*a	(A) Forward Position
*b	(B)
*c	(C) Driving Position
*d	(D)
*e	(E) Retracted Position
*f	Component without harness connected (Outer Rear View Mirror Assembly RH)

For each position: Disconnect the auxiliary battery, set the mirror position by hand, connect the auxiliary battery, and check the retractable mirror movement.

OK:

Auxiliary Battery Connection	Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 6 (MR) Auxiliary battery negative (-) → Terminal 12 (MF)	Forward position (A)	Moves from (A) to (E)
Auxiliary battery positive (+) → Terminal 12 (MF) Auxiliary battery negative (-) → Terminal 6 (MR)	Forward position (A)	Does not move
Auxiliary battery positive (+) → Terminal 6 (MR) Auxiliary battery negative (-) → Terminal 12 (MF)	Position between forward position (A) and driving position (C)	Moves from (B) to (E)
Auxiliary battery positive (+) → Terminal 12 (MF) Auxiliary battery negative (-) → Terminal 6 (MR)	Position between forward position (A) and driving position (C)	Moves from (B) to (A)
Auxiliary battery positive (+) → Terminal 6 (MR) Auxiliary battery negative (-) → Terminal 12 (MF)	Driving position (C)	Moves from (C) to (E)
Auxiliary battery positive (+) → Terminal 12 (MF) Auxiliary battery negative (-) → Terminal 6 (MR)	Driving position (C)	Does not move
Auxiliary battery positive (+) → Terminal 6 (MR) Auxiliary battery negative (-) → Terminal 12 (MF)	Position between driving position (C) and retracted position (E)	Moves from (D) to (E)
Auxiliary battery positive (+) → Terminal 12 (MF) Auxiliary battery negative (-) → Terminal 6 (MR)	Position between driving position (C) and retracted position (E)	Moves from (D) to (C)
Auxiliary battery positive (+) → Terminal 6 (MR) Auxiliary battery negative (-) → Terminal 12 (MF)	Retracted position (E)	Does not move
Auxiliary battery positive (+) → Terminal 12 (MF) Auxiliary battery negative (-) → Terminal 6 (MR)	Retracted position (E)	Moves from (E) to (C)

If the result is not as specified, replace the outer rear view mirror assembly RH.

Hide Display 87940 6.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH (w/ Automatic Retractable Mirror)

Check the operation of the mirror surface.

NOTICE:: If the mirror surface is fully turned to the right, left, upward or downward position, the motor slips and produces a clicking noise. This is not a malfunction.

Disconnect the outer rear view mirror assembly LH connector.

ii.

1.698,1.896 1.406,1.896 1.406,1.896 1.406,2.604 true 1.115,3.271 1.406,3.271 1.406,3.271 1.406,2.833 true 1.792,3.271 1.531,3.271 1.531,3.271 1.531,2.833 true 0.698,1.969 1.01,2.167 0.313,0.198 10 false *a 1.74,1.813 2.052,2.01 0.313,0.198 10 false MV 0.885,3.208 1.198,3.406 0.313,0.198 10 false MH 1.823,3.188 2.135,3.385 0.313,0.198 10 false M+

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply auxiliary battery voltage and check the operation of the mirror surface.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → Terminal 2 (MV) Auxiliary battery negative (-) → Terminal 10 (M+)	Turns upward
Auxiliary battery positive (+) → Terminal 10 (M+) Auxiliary battery negative (-) → Terminal 2 (MV)	Turns downward
Auxiliary battery positive (+) → Terminal 10 (M+) Auxiliary battery negative (-) → Terminal 9 (MH)	Turns right
Auxiliary battery positive (+) → Terminal 9 (MH) Auxiliary battery negative (-) → Terminal 10 (M+)	Turns left

If the result is not as specified, replace the outer rear view mirror assembly LH.

Check the operation of the mirror heater.

Disconnect the outer rear view mirror assembly LH connector.

ii.

1.781,2.604 1.781,1.844 1.781,1.844 2.198,1.844 true 1.542,2.604 1.542,1.854 1.542,1.854 1.125,1.854 true 0.667,1.635 0.979,1.833 0.313,0.198 10 false *a 2.26,1.76 2.729,2 0.469,0.24 10 false + 0.969,1.781 1.438,2.021 0.469,0.24 10 false E

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
5 (+) - 3 (E)	25°C (77°F)	12 to 18 Ω

If the result is not as specified, replace the outer rear view mirror assembly LH.

iii.

Connect a cable from the positive (+) auxiliary battery terminal to terminal 5 (+) and the negative (-) auxiliary battery terminal to terminal 3 (E), then check that the mirror becomes warm.

HINT:: It takes a short time for the mirror to become warm.

OK:: Mirror becomes warm.

If the result is not as specified, replace the outer rear view mirror assembly LH.

Check the operation of the retractable mirror.

NOTICE:: ·

Disconnect and reconnect the auxiliary battery between each mirror position check.

·

The mirror position cannot be changed manually when the auxiliary battery is connected. To change the mirror position manually, the auxiliary battery must be disconnected first.

·

If the motor is kept energized, even after each mirror position check, it may lead to a motor malfunction. Make sure to disconnect the auxiliary battery immediately after performing each mirror position check.

Disconnect the outer rear view mirror assembly LH connector.

ii.

2,3.729 2,2.979 2,2.979 2.323,2.979 true 2,3.969 2,4.302 2,4.302 2.313,4.302 true 1.323,0.333 1.635,0.49 0.313,0.156 10 false *a 1,1.073 1.313,1.229 0.313,0.156 10 false *b 1.177,1.99 1.49,2.146 0.313,0.156 10 false *c 1.583,2.25 1.896,2.406 0.313,0.156 10 false *d 1.958,2.458 2.271,2.615 0.313,0.156 10 false *e 0.844,3.177 1.156,3.333 0.313,0.156 10 false *f 2.365,2.906 2.677,3.063 0.313,0.156 10 false MR 2.354,4.229 2.667,4.385 0.313,0.156 10 false MF

*a	(A) Forward Position
*b	(B)
*c	(C) Driving Position
*d	(D)
*e	(E) Retracted Position
*f	Component without harness connected (Outer Mirror Actuator Assembly LH)

For each position: Disconnect the auxiliary battery, set the mirror position by hand, connect the auxiliary battery, and check the retractable mirror movement.

OK:

Auxiliary Battery Connection	Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 6 (MR) Auxiliary battery negative (-) → Terminal 12 (MF)	Forward position (A)	Moves from (A) to (E)
Auxiliary battery positive (+) → Terminal 12 (MF) Auxiliary battery negative (-) → Terminal 6 (MR)	Forward position (A)	Does not move
Auxiliary battery positive (+) → Terminal 6 (MR) Auxiliary battery negative (-) → Terminal 12 (MF)	Position between forward position (A) and driving position (C)	Moves from (B) to (E)
Auxiliary battery positive (+) → Terminal 12 (MF) Auxiliary battery negative (-) → Terminal 6 (MR)	Position between forward position (A) and driving position (C)	Moves from (B) to (A)
Auxiliary battery positive (+) → Terminal 6 (MR) Auxiliary battery negative (-) → Terminal 12 (MF)	Driving position (C)	Moves from (C) to (E)
Auxiliary battery positive (+) → Terminal 12 (MF) Auxiliary battery negative (-) → Terminal 6 (MR)	Driving position (C)	Does not move
Auxiliary battery positive (+) → Terminal 6 (MR) Auxiliary battery negative (-) → Terminal 12 (MF)	Position between driving position (C) and retracted position (E)	Moves from (D) to (E)
Auxiliary battery positive (+) → Terminal 12 (MF) Auxiliary battery negative (-) → Terminal 6 (MR)	Position between driving position (C) and retracted position (E)	Moves from (D) to (C)
Auxiliary battery positive (+) → Terminal 6 (MR) Auxiliary battery negative (-) → Terminal 12 (MF)	Retracted position (E)	Does not move
Auxiliary battery positive (+) → Terminal 12 (MF) Auxiliary battery negative (-) → Terminal 6 (MR)	Retracted position (E)	Moves from (E) to (C)

If the result is not as specified, replace the outer rear view mirror assembly LH.
